Outdoor Sound Propagation

By José M. Requena Plens · Published Jul 8, 2026, updated Jul 25, 2026

Standards: EUR 25379 EN ISO 9613 ISO 354Key references: Salomons 2001 Attenborough & Van Renterghem 2021 Maekawa 1968

Predicting the noise a distant source delivers to a receiver outdoors is a book-keeping exercise: start from the source sound power and subtract, band by band, every mechanism that attenuates the sound on its way: spherical spreading, the air itself, the ground, and any barrier in between. This page covers the two parts of ISO 9613 that supply those terms: ISO 9613-1, the pure-tone atmospheric absorption coefficient $α$ , and ISO 9613-2, the general method that assembles $α$ with divergence, ground and screening into an octave-band prediction. The atmospheric coefficient also closes the loop with room acoustics, since ISO 354 defers its air power-attenuation coefficient $m$ entirely to $α$ .

1. Atmospheric absorption (ISO 9613-1)

Air is not lossless. A propagating tone bleeds energy into shear viscosity and heat conduction (the classical and rotational losses that grow as $f^{2}$ ) and into the vibrational relaxation of the oxygen and nitrogen molecules, each an energy store that resonates near a humidity- and temperature-dependent relaxation frequency. ISO 9613-1:1993, Eq. (5) collects all of this into the pure-tone attenuation coefficient $α$ , in decibels per metre:

α = 8.686 f^{2} [1.84 \times 1 0^{- 11} (p_{a} / p_{r})^{- 1} (T / T_{0})^{1/2} + (T / T_{0})^{- 5/2} (0.01275 \frac{e ^{- 2239.1/ T}}{f _{r O} + f ^{2} / f _{r O}} + 0.1068 \frac{e ^{- 3352.0/ T}}{f _{r N} + f ^{2} / f _{r N}})],

with the oxygen and nitrogen relaxation frequencies $f_{r O}$ , $f_{r N}$ (Eq. (3)/(4)), the reference conditions $T_{0} = 293.15$ K and $p_{r} = 101.325$ kPa (Clause 4.2), and the molar water-vapour concentration $h$ obtained from the relative humidity by the Annex B psychrometric conversion. Two features dominate the shape: at low frequency $α \propto f^{2}$ , so it rises steeply; and near each relaxation frequency the matching term peaks and rolls off. Between them $α$ climbs about two decades from 50 Hz to 10 kHz, and, because humidity sets $f_{r O}$ , sweeping the humidity moves a relaxation peak across the band, so the driest air is not always the least absorbing.

ISO 9613-1 pure-tone atmospheric attenuation coefficient alpha in dB/km against frequency on log-log axes, for four temperature and humidity combinations, showing the f-squared low-frequency growth and the humidity-dependent relaxation roll-off

The dry 20 °C / 10 % curve absorbs most at mid frequencies, but the humid curves overtake it below ~200 Hz: the relaxation signature.

Show the code for this figure

import matplotlib.pyplot as plt
import numpy as np
from phonometry import environmental

freqs = np.geomspace(50.0, 10000.0, 400)
fig, ax = plt.subplots()
for temp, rh in [(20.0, 50.0), (20.0, 10.0), (0.0, 70.0), (30.0, 80.0)]:
    ax.loglog(freqs, environmental.air_attenuation(freqs, temp, rh) * 1000.0,
              label=f"{temp:g} °C, {rh:g} % RH")
ax.set_xlabel("Frequency [Hz]")
ax.set_ylabel("Attenuation coefficient alpha [dB/km]")
ax.legend()
plt.show()

import numpy as np
from phonometry import environmental

bands = [63, 125, 250, 500, 1000, 2000, 4000, 8000]   # octave-band centres [Hz]

# Pure-tone attenuation coefficient alpha [dB/m] at 20 °C, 50 % RH, one atmosphere
alpha = environmental.air_attenuation(bands, temperature=20.0, relative_humidity=50.0)
print(np.round(alpha * 1000.0, 2))          # in dB/km, as Table 1 tabulates
# [  0.12   0.44   1.31   2.73   4.66   9.89  29.67 105.29]

# Reproduce an ISO 9613-1 Table 1 cell exactly (10 °C, 70 %, 1 kHz)
cell = environmental.air_attenuation(1000.0, 10.0, 70.0, exact_midband=True) * 1000.0
print(round(float(cell), 2))                # 3.66  (dB/km, Table 1)

# Feed real conditions into the ISO 354 power attenuation coefficient m [1/m]
m = environmental.air_attenuation_m([1000.0, 4000.0], temperature=20.0, relative_humidity=50.0)
print(np.round(m, 5))                        # [0.00107 0.00683]

air_attenuation returns dB/m (Table 1 prints dB/km, i.e. $\times 1000$ ); it is fully vectorized over frequencies with scalar temperature, humidity and pressure. Passing exact_midband=True snaps each requested frequency onto the exact one-third-octave midband $f_{m} = 1000 \cdot 1 0^{k /10}$ (Eq. (6), Note 5) used to compute Table 1, so the library reproduces every tabulated point to under 0.4 %, the standard’s own three-significant-figure precision, far inside its stated $\pm 10$ % accuracy (Clause 7.1). Inputs outside the tabulated ranges (−20…+50 °C, 10…100 % RH, 50…10 000 Hz, or above the 200 kPa validity envelope) still compute but raise an AtmosphericAbsorptionWarning; non-physical inputs (non-positive frequency, humidity outside 0…100 %, sub-absolute-zero temperature) raise ValueError. air_attenuation_m composes $α$ with the ISO 354 conversion $m = α / (10 l g e)$ so an ISO 354 caller can feed real atmospheric conditions straight into absorption_area / absorption_coefficient instead of hand-entering $m$ .

`air_attenuation()` / `air_attenuation_m()` parameters

Parameter	Type / shape	Units	Range / default	Notes
`frequencies`	scalar or 1D array	Hz	> 0	Vectorized; 50–10 000 Hz tabulated
`temperature`	float	°C	default `20.0`	−20…+50 tabulated; outside warns
`relative_humidity`	float	%	default `50.0`	10…100 tabulated; `[0, 100]` allowed
`pressure`	float	kPa	default `101.325`	≤ 200 valid (Clause 7); above warns
`exact_midband`	bool	—	default `False`	Snap to $f_{m} = 1000 \cdot 1 0^{k /10}$ (reproduces Table 1)

air_attenuation returns $α$ in dB/m; air_attenuation_m returns $m = α / (10 l g e)$ in 1/m for ISO 354.

A plottable result: `atmospheric_attenuation()`

For a figure or a quick look, atmospheric_attenuation() wraps the same coefficient in a small AtmosphericAttenuation result. It carries the frequency grid, the coefficient $α$ and the atmospheric conditions, and exposes .plot() for the classic $α$ -versus-frequency curve (drawn in dB/km, the Table 1 unit, on a linear ordinate over a logarithmic frequency axis). Passing a distance also records the total attenuation $A = α d$ , in decibels, over that path as total_attenuation, the ISO 9613-2 $A_{a t m}$ of Eq. (8).

from phonometry import environmental

res = environmental.atmospheric_attenuation(
    [63, 125, 250, 500, 1000, 2000, 4000, 8000],
    temperature=20.0, relative_humidity=50.0,
)
res.plot()   # alpha in dB/km against frequency (needs matplotlib)

ISO 9613-1 pure-tone atmospheric attenuation coefficient alpha in dB/km against frequency, on a linear decibel ordinate over a logarithmic frequency axis, for the reference 20 degrees Celsius and 50 percent relative humidity atmosphere, produced by the AtmosphericAttenuation result plot method

On a linear decibel ordinate the coefficient stays near zero up to about 1 kHz and then climbs steeply, passing 20 dB/km near 3 kHz and reaching over 150 dB/km by 10 kHz at the reference 20 °C / 50 % RH atmosphere.

Show the code for this figure

import matplotlib.pyplot as plt
import numpy as np
from phonometry import environmental

# One line: the coefficient curve straight from the result.
res = environmental.atmospheric_attenuation(
    np.geomspace(50.0, 10000.0, 400), temperature=20.0, relative_humidity=50.0,
)
res.plot()
plt.show()

# Or by hand from air_attenuation (dB/m, so scale by 1000 for dB/km):
freqs = np.geomspace(50.0, 10000.0, 400)
fig, ax = plt.subplots()
ax.semilogx(freqs, environmental.air_attenuation(freqs, 20.0, 50.0) * 1000.0)
ax.set_xlabel("Frequency [Hz]")
ax.set_ylabel("Attenuation coefficient alpha [dB/km]")
plt.show()

2. General method of calculation (ISO 9613-2)

ISO 9613-2:1996 predicts the octave-band level at a receiver downwind of a point source (or under the equivalent moderate temperature inversion, Clause 5). The equivalent-continuous downwind level is

L_{f T} (D W) = L_{W} + D_{c} - A, A = A_{d i v} + A_{a t m} + A_{g r} + A_{ba r} + A_{mi sc},

(Eq. (3)/(4)) where $L_{W}$ is the octave-band sound power level, $D_{c}$ the directivity correction (directivity index plus a solid-angle index $D_{Ω}$ ), and $A$ the total attenuation. The library implements the four general terms of Clause 7; the informative $A_{mi sc}$ (foliage, industrial sites, housing; Annex A) and reflections off vertical obstacles (Clause 7.5) are not implemented: the standard treats them as informative and they are left to the caller.

The geometry of the screening term fixes the vocabulary: the diffraction edge splits the source-to-receiver distance into $d_{ss}$ and $d_{sr}$ , and the extra path length over the edge is $z = d_{ss} + d_{sr} - d$ . When the line of sight passes above the top edge, the standard gives $z$ a negative sign (Barrier(line_of_sight_clear=True)) and Eq. (14) still applies with $K_{m e t} = 1$ : $D_{z}$ falls continuously from $10 l g 3 \approx 4.8$ dB at grazing incidence to zero as the clearance deepens, never below zero.

$ISO 9613-2 source-barrier-receiver geometry: a point source at height hs, a barrier whose top edge splits the path into dss and dsr, and a receiver at height hr, with the blocked direct ray and the diffracted ray over the edge, the path difference z and the Dz formula$ $ISO 9613-2 source-barrier-receiver geometry: a point source at height hs, a barrier whose top edge splits the path into dss and dsr, and a receiver at height hr, with the blocked direct ray and the diffracted ray over the edge, the path difference z and the Dz formula$

The four attenuation terms

Geometrical divergence $A_{d i v} = 20 lo g_{10} (d / d_{0}) + 11$ dB, $d_{0} = 1$ m (Eq. (7)): spherical spreading from a point source. Exactly 51 dB at 100 m, +6 dB per distance doubling. The $+ 11$ ( $= 10 l g 4 π$ ) sets the level at the 1 m reference distance.
Atmospheric absorption $A_{a t m} = α d$ (Eq. (8)) with $α$ the ISO 9613-1 coefficient, negligible at low frequency and dominant at 8 kHz over long paths. $α$ is evaluated at the exact base-10 midband behind each nominal band label (7 943.3 Hz for “8 kHz”), the convention behind the ISO 9613-2 Table 2 coefficients (the nominal-frequency evaluation runs ~1.3 % high at 8 kHz). The ISO 9613-2 functions default to 20 °C and 70 % relative humidity (one of the Table 2 reference atmospheres the standard tabulates) while air_attenuation itself defaults to the ISO 9613-1 usual 50 %.
Ground effect $A_{g r} = A_{s} + A_{r} + A_{m}$ (Eq. (9)) sums a source, receiver and middle region, each from the Table 3 functions $a^{'} / b^{'} / c^{'} / d^{'}$ and its ground factor $G$ (0 = hard/reflective, 1 = porous/absorbing). A negative $A_{g r}$ is a net gain from constructive ground reflection.
Screening by a barrier is the diffraction insertion loss $D_{z} = 10 lo g_{10} [3 + (C_{2} / λ) C_{3} z K_{m e t}]$ (Eq. (14)), capped at 20 dB (single edge) or 25 dB (double edge). For a top-edge barrier the ground effect of the screened path folds into it, $A_{ba r} = D_{z} - A_{g r} \geq 0$ (Eq. (12), Note 13); for a lateral barrier $A_{ba r} = D_{z}$ and the ground term is retained (Eq. (13)).

outdoor_propagation_attenuation assembles the four terms into an OutdoorAttenuation result whose per-band arrays sum, band by band, to a_total, so the divergence, atmospheric, ground and barrier contributions stay separable. The stacked breakdown makes the frequency character obvious: the barrier helps most at high frequency (short wavelength) until it saturates at the cap, atmospheric absorption bites only at 8 kHz, and the ground dip lives in the mid bands.

ISO 9613-2 per-octave-band attenuation breakdown as a stacked bar of Adiv, Aatm, Agr and Abar with the total A overlaid, for a 200 m path over porous ground with a 4 m barrier

Show the code for this figure

import matplotlib.pyplot as plt
import numpy as np
from phonometry import environmental

bands = np.array([63.0, 125.0, 250.0, 500.0, 1000.0, 2000.0, 4000.0, 8000.0])
barrier = environmental.Barrier(source_to_edge=101.0, edge_to_receiver=101.0)
att = environmental.outdoor_propagation_attenuation(
    200.0, 1.5, 1.5, bands, ground_source=1.0, ground_middle=1.0,
    ground_receiver=1.0, barrier=barrier, temperature=15.0,
    relative_humidity=70.0,
)

# One line — the same stacked breakdown with the total overlaid:
att.plot()

# By hand:
x = np.arange(len(bands))
fig, ax = plt.subplots()
# Separate positive and negative baselines: a negative term (Agr is a net
# gain at 63 Hz here) stacks below zero, and the signed heights sum to a_total.
pos_bottom = np.zeros(len(bands))
neg_bottom = np.zeros(len(bands))
for term, label in [(att.a_div, "Adiv — divergence"),
                    (att.a_atm, "Aatm — atmospheric"),
                    (att.a_gr, "Agr — ground"),
                    (att.a_bar, "Abar — barrier")]:
    ax.bar(x, term, bottom=np.where(term >= 0.0, pos_bottom, neg_bottom),
           label=label)
    pos_bottom += np.maximum(term, 0.0)
    neg_bottom += np.minimum(term, 0.0)
ax.plot(x, att.a_total, "D-", color="black", label="A — total")
ax.set_xticks(x)
ax.set_xticklabels([f"{b:g}" for b in bands])
ax.set_xlabel("Octave-band centre frequency [Hz]")
ax.set_ylabel("Attenuation A [dB]")
ax.legend()
plt.show()

import numpy as np
from phonometry import environmental

bands = [63, 125, 250, 500, 1000, 2000, 4000, 8000]   # octave-band centres [Hz]

# A point source and receiver 1.5 m high, 200 m apart over porous ground
# (G = 1), screened midway by a barrier that raises the path over its top edge
# (dss = dsr ~ 101 m). Geometry feeds the pathlength-difference equations.
barrier = environmental.Barrier(source_to_edge=101.0, edge_to_receiver=101.0)
att = environmental.outdoor_propagation_attenuation(
    200.0, source_height=1.5, receiver_height=1.5, frequencies=bands,
    ground_source=1.0, ground_middle=1.0, ground_receiver=1.0,
    barrier=barrier, temperature=15.0, relative_humidity=70.0,
)
print(np.round(att.a_div, 1))     # [57. 57. 57. 57. 57. 57. 57. 57.]  divergence
print(np.round(att.a_gr, 2))      # [-4.65  2.34 13.79  9.76  1.3  -0.   -0.   -0.  ]
print(np.round(att.a_bar, 2))     # [13.78  8.89  0.    6.69 18.01 20.   20.   20.  ]
print(np.round(att.a_total, 1))   # [66.2 68.3 71.  73.9 77.1 78.8 82.3 96. ]
att.plot()                        # the stacked breakdown above (needs matplotlib)

# Predicted receiver level from an octave-band sound power Lw = 95 dB
lw = np.full(len(bands), 95.0)
lp = environmental.predicted_receiver_level(
    lw, 200.0, 1.5, 1.5, bands, 1.0, 1.0, 1.0,
    barrier=barrier, temperature=15.0, relative_humidity=70.0,
)
print(np.round(lp, 1))            # [28.8 26.7 24.  21.1 17.9 16.2 12.7 -1. ]

predicted_receiver_level composes $L_{f T} (D W) = L_{W} + D_{c} - A$ with $D_{c} =$ directivity_index $+$ d_omega. Pass c0= to subtract the meteorological correction $C_{m e t}$ (Eq. (21)/(22)) band by band for a long-term average; note that the standard applies $C_{m e t}$ to the A-weighted level, so the per-band form here is a convenience, not a literal reading of Clause 8.

Ground: the alternative A-weighted method

When only the A-weighted receiver level matters and the sound travels over porous or mostly-porous ground (and is not a pure tone), 7.3.2 offers a simpler closed form $A_{g r} = 4.8 - \frac{2 h _{m}}{d} (17 + \frac{300}{d}) \geq 0$ (Eq. (10), negative results clamped to zero), paired with the solid-angle index $D_{Ω}$ (Eq. (11)) that must then be added to $D_{c}$ . These are exposed as ground_attenuation_alternative and directivity_omega, but they are not auto-wired into outdoor_propagation_attenuation (which always uses the general per-region method of 7.3.1); combine them by hand when the alternative method is appropriate.

from phonometry import environmental

# Alternative ground term (mean path height hm = 2 m, d = 200 m)
print(round(environmental.ground_attenuation_alternative(200.0, 2.0), 2))          # 4.43 dB
# Its companion solid-angle index (add to Dc when using Eq. (10))
print(round(environmental.directivity_omega(1.5, 1.5, 200.0), 2))                  # 3.01 dB
# Long-term meteorological correction (C0 = 2 dB) to subtract from LAT(DW)
print(round(environmental.meteorological_correction(200.0, 1.5, 1.5, 2.0), 2))     # 1.7 dB

The image source behind the ground effect

Every entry of Table 3 is an engineering fit to one physical picture: the receiver hears two copies of the source, the direct ray $r_{1}$ and a reflection that arrives exactly as if it were radiated by an image source mirrored below the ground plane. The two copies interfere according to the path difference $δ = r_{2} - r_{1}$ (about $2 h_{s} h_{r} / d$ for a grazing far-field path): in phase they add up to $+ 6$ dB; at $δ = λ /2$ over a rigid plane they cancel into a sharp dip.

A point source at height hs and a receiver microphone at height hr over a hatched ground plane; a straight direct ray r1 connects them and a reflected ray bounces at the specular point with equal grazing angles; the reflection is unfolded as a dashed straight ray r2 from a ghosted image source mirrored below the ground, and the annotations give the path difference delta = r2 minus r1, the interference phase 2 pi delta over lambda plus the reflection phase, the in-phase gain of up to +6 dB and the deep dip at half a wavelength over hard ground

Over acoustically hard ground ( $G = 0$ ) the reflection coefficient stays close to $+ 1$ in every octave, the long-wavelength sum is fully constructive, and the general method duly returns $A_{g r} = - 3$ dB in each band. Porous ground turns the reflection coefficient complex and angle-dependent (for a point source near grazing incidence, the spherical-wave coefficient of the Chien-Soroka solution, with a ground-wave term no plane-wave picture captures): part of the reflection flips phase, and the destructive notch lands in the 250 to 1000 Hz octaves. That notch is precisely what the $a^{'}$ to $d^{'}$ height-and-distance functions of Table 3 parameterize, with $G$ blending the hard and porous behaviours. The same two-ray geometry carries over to aircraft lateral attenuation and to every ray-based outdoor model; Salomons and Attenborough & Van Renterghem develop the full theory that the engineering fit compresses.

A negative $A_{g r}$ (a net gain) is plain interference: the ground-reflected wave adds to the direct one. Below, a 400 Hz source 1.5 m over rigid ground builds the lobe pattern of that interference, and the level sampled on an arc converges to the two-path image-source model, dips included.

Download the animation (WebM)

`Barrier` and the screening term

The Barrier dataclass describes the diffraction geometry directly, which is the cleanest match to Eq. (14)/(16)/(17). Single diffraction (a thin screen) leaves edge_separation=None ( $C_{3} = 1$ ); giving the edge spacing e selects double (thick-barrier) diffraction with the $C_{3}$ factor of Eq. (15) and the 25 dB cap. ground_reflections_by_image=True switches $C_{2}$ from 20 to 40 (reflections handled by image sources), and lateral=True selects vertical-edge diffraction (Eq. (13), $K_{m e t} = 1$ , ground term retained).

The simulation below shows why $D_{z}$ grows with frequency: against the same 2.5 m screen, a 100 Hz wavefront (λ ≈ 3.4 m) diffracts over the edge and fills the shadow zone, while at 500 Hz the shadow is deep and sharp. A barrier only works when the wavelength is short next to the path difference.

Download the animation (WebM)

`outdoor_propagation_attenuation()` parameters

Parameter	Type / shape	Units	Range / default	Notes
`distance`	float	m	> 0	Straight-line source–receiver distance $d$
`source_height` / `receiver_height`	float	m	≥ 0	$h_{s}$ , $h_{r}$ above ground
`frequencies`	1D array	Hz	default 8 octaves 63–8000	`DEFAULT_FREQUENCIES`
`ground_source` / `ground_middle` / `ground_receiver`	float	—	`[0, 1]`, default `0.0`	Ground factor $G$ (0 hard, 1 porous)
`barrier`	`Barrier` or None	—	default `None`	Screening obstacle
`temperature` / `relative_humidity` / `pressure`	float	°C / % / kPa	20 / 70 / 101.325	Passed to $A_{a t m}$
`projected_distance`	float or None	m	default $d^{2} - (h_{s} - h_{r})^{2}$	Ground-plane $d_{p}$

Returns an OutdoorAttenuation with a_div, a_atm, a_gr, a_bar, a_total and d_omega, all one value per band; its .plot() draws the stacked per-band breakdown with the total overlaid (the figure above).

`Barrier` fields

Field	Type	Units	Default	Notes
`source_to_edge`	float	m	—	$d_{ss}$ , source to first edge
`edge_to_receiver`	float	m	—	$d_{sr}$ , (last) edge to receiver
`parallel_distance`	float	m	`0.0`	Component $a$ parallel to the edge
`edge_separation`	float or None	m	`None`	$e$ ; given ⇒ double diffraction (25 dB cap)
`ground_reflections_by_image`	bool	—	`False`	`True` ⇒ $C_{2} = 40$
`lateral`	bool	—	`False`	`True` ⇒ vertical-edge diffraction (Eq. (13))
`line_of_sight_clear`	bool	—	`False`	`True` ⇒ the sight line passes above the top edge: the path difference takes a negative sign and Kmet = 1 (text after Eq. (16))

3. Scope, assumptions and pitfalls

What “favourable propagation conditions” means

ISO 9613-2 does not predict the level under the weather of the moment. Every equation assumes conditions favourable to propagation (Clause 5): wind blowing from source to receiver (within about 45° of the connecting line, at roughly 1 to 5 m/s measured 3 to 11 m above ground), or the moderate ground-based temperature inversion of a clear, calm night, which curves sound rays downward the same way. Downward refraction closes the acoustic shadow zones that upwind or neutral atmospheres would form, so the predicted $L_{f T} (D W)$ is close to the highest level the geometry can deliver: over a year the actual level is usually lower and rarely meaningfully higher. The choice is deliberate. Complaints arrive on the still nights when a distant plant is clearly audible, not on the gusty afternoons when it vanishes, and a method that predicts the audible case protects the assessment. The long-term average is recovered by subtracting $C_{m e t}$ (Eq. (21)/(22)), whose $C_{0}$ encodes how often the wind actually favours the path (about $+ 3$ dB when half the time is favourable, values above 2 dB already exceptional, Notes 20/22). The stated $\pm 1$ to $\pm 3$ dB accuracy (Table 5) holds under favourable conditions, for broadband sources, up to 1000 m; beyond that the standard makes no accuracy claim at all.

Barrier pitfalls beyond the animation

The screening term is the easiest one to over-trust; four fine points decide whether a real barrier delivers its computed $D_{z}$ :

The caps are physical, not editorial. $D_{z}$ is capped at 20 dB for single and 25 dB for double diffraction no matter how tall the wall, because atmospheric turbulence scatters sound into the shadow zone and sets a ceiling that extra height cannot buy back. An insertion loss beyond roughly 20 dB is enclosure territory, not screen territory. Eq. (14) itself is a smoothed engineering curve in the tradition of Maekawa’s screen chart, an empirical fit over three decades of Fresnel number $N = 2 z / λ$ .
$K_{m e t}$ quietly erodes distant barriers. The meteorological factor (Eq. (18)) discounts the screening because the same downward-curved rays that make conditions favourable also pass over the top edge. Within 100 m of source-receiver distance $K_{m e t} \approx 1$ (Note 17), but for a long path with a small path difference it can strip several decibels off a barrier that looks generous on the section drawing.
Double diffraction is a modest bonus. A thick obstacle (two edges separated by $e$ ) raises $C_{3}$ from 1 toward 3 (Eq. (15)), worth at most about $10 l g 3 \approx 4.8$ dB extra plus the higher 25 dB cap. A building modelled as a double edge only earns that bonus if both edges really are continuous and the roof between them is closed.
The ground effect is spent, not kept. For a top-edge barrier the standard folds the screened path’s ground effect into the diffraction: $A_{ba r} = D_{z} - A_{g r}$ (Eq. (12), Note 13). Over porous ground that was already providing 5 to 10 dB of $A_{g r}$ in the mid bands, the net gain of building the barrier is correspondingly smaller than its nominal $D_{z}$ ; the two effects do not stack.

An obstacle must also qualify as a barrier at all (Clause 7.4): surface density at least 10 kg/m², a closed surface without large gaps, and a horizontal extent normal to the path larger than the wavelength. A slatted fence or a short container screens far less than Eq. (14) promises.

ISO 9613-2 or CNOSSOS-EU?

Two frameworks dominate outdoor noise prediction in Europe, and they answer different questions:

ISO 9613-2 is a general engineering attenuation method: given the octave-band sound power of any source you can decompose into point sources, it returns the favourable-condition receiver level. Source emission is out of scope; the sound power comes from measurement (the ISO 3740 family) or from the equipment supplier. It is the workhorse of industrial-plant and environmental impact predictions assessed with ISO 1996-2.
CNOSSOS-EU (Common Noise Assessment Methods in Europe) is the mandatory common framework for the strategic noise maps of the Environmental Noise Directive 2002/49/EC, adopted as its Annex II by Commission Directive (EU) 2015/996. It bundles emission models for road, rail and industrial sources (and delegates aircraft to ECAC Doc 29) with its own propagation part derived from the French NMPB 2008 method, producing the $L_{d e n}$ / $L_{ni g h t}$ indicators the Directive reports.

The propagation parts disagree by design, not by accident. CNOSSOS-EU evaluates every path twice, once under a homogeneous atmosphere and once under favourable (downward-refracting) conditions, and combines the two long-term with the local occurrence probability of favourable conditions per path direction; ISO 9613-2 computes only the favourable case and subtracts a scalar $C_{m e t}$ . The ground effect in CNOSSOS-EU is built from a path-averaged ground factor over a fitted mean plane, with expressions that change between the two atmospheres, where ISO 9613-2 uses the fixed three-region Table 3. Diffraction, too, follows a different formulation that couples the ground effect on each side of the edge. Run both on the same geometry and the octave-band results can differ by several decibels, each internally consistent. The practical rule: END strategic maps and anything that must be comparable across EU member states use CNOSSOS-EU; a plant permit, a compliance prediction against a measured sound power, or work under regulations that cite ISO 9613 use this module. (ISO published a revised ISO 9613-2 in 2024; this library implements the 1996 edition, the one most national regulations and the validation literature still reference.)

See the Theory page for the full derivation, the Room Acoustics guide for how $α$ feeds ISO 354, and the Occupational Noise Exposure guide for the ISO 9612 occupational exposure that consumes A-weighted levels.

4. Prediction reports (`.report()`)

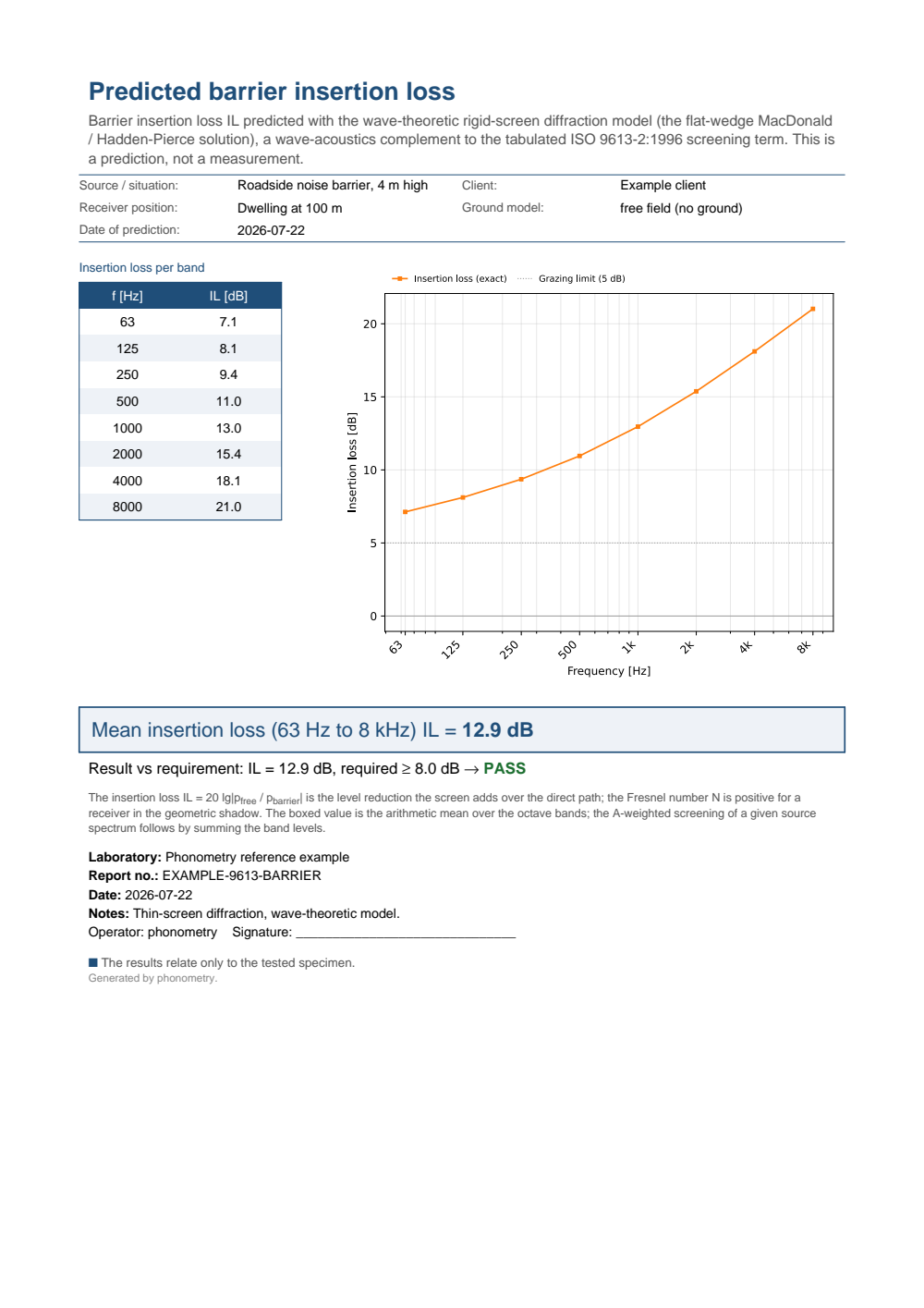

Both outdoor-propagation results render a one-page PDF prediction fiche. They are clearly labelled predictions, not measurements: the sheet states the meteorological and ground assumptions and, for the barrier, names the actual diffraction model behind the number.

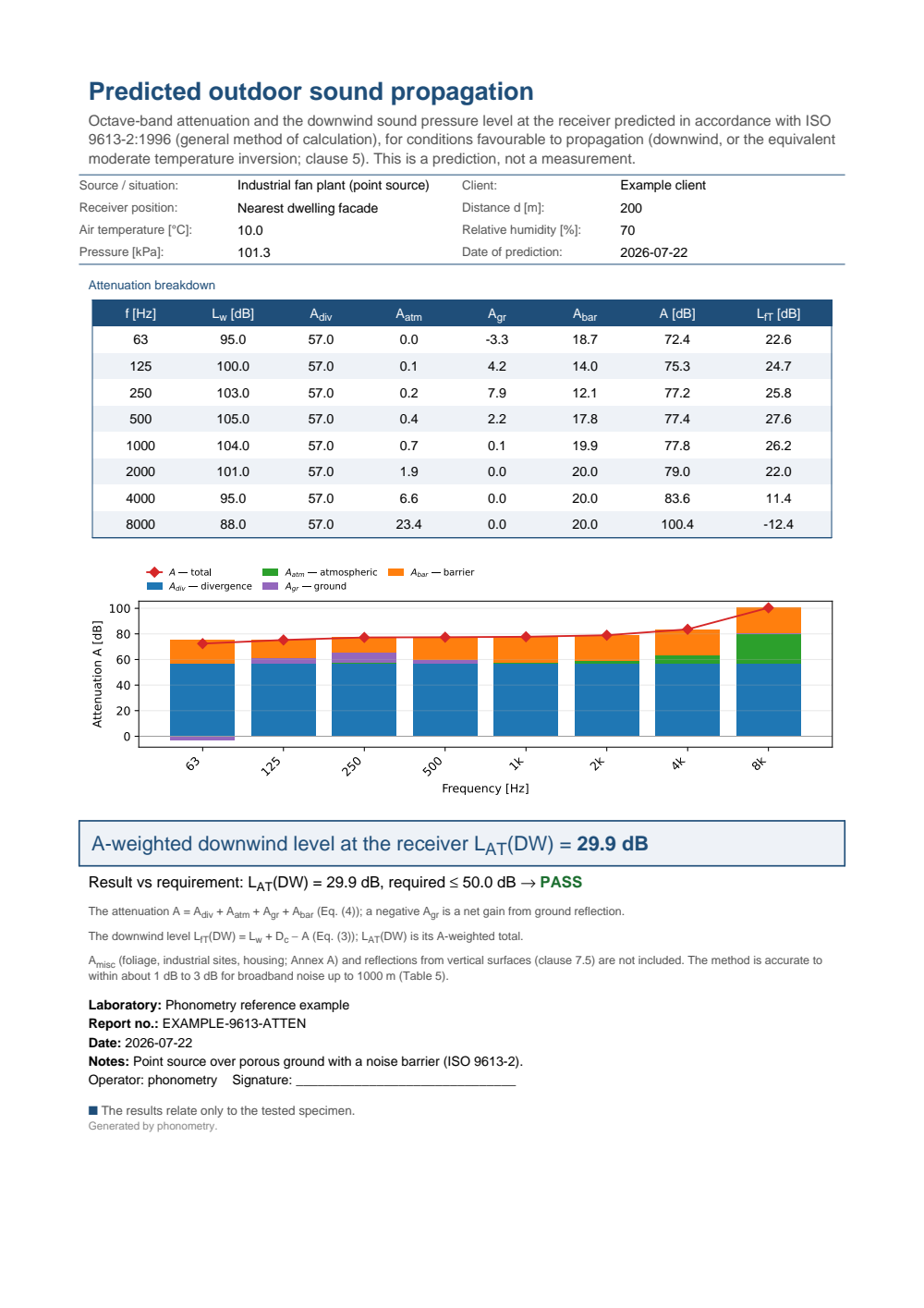

OutdoorAttenuation.report(path) boxes the octave-band range of the total attenuation on its own; pass a SourceEmission (the source sound power and directivity) to add the source power and downwind level to the table and box the A-weighted downwind level $L_{A T} (DW)$ at the receiver instead. A limit level supplied through the metadata requirement then adds a PASS/FAIL verdict (a lower level is better). Pass language="es" for the Spanish fiche.

import numpy as np
from phonometry import (
    Barrier,
    ReportMetadata,
    SourceEmission,
    outdoor_propagation_attenuation,
)

freqs = np.array([63, 125, 250, 500, 1000, 2000, 4000, 8000], dtype=float)
lw = np.array([95, 100, 103, 105, 104, 101, 95, 88], dtype=float)
result = outdoor_propagation_attenuation(
    200.0, 4.0, 2.0, freqs, 1.0, 1.0, 1.0,
    barrier=Barrier(source_to_edge=105.0, edge_to_receiver=105.0),
    temperature=10.0, relative_humidity=70.0,
)
result.report(
    "outdoor_attenuation.pdf",
    metadata=ReportMetadata(
        specimen="Industrial fan plant (point source)",
        test_room="Nearest dwelling facade",
        requirement=50.0,  # maximum acceptable A-weighted downwind level
    ),
    source_emission=SourceEmission(sound_power_level=lw),
)

ISO 9613-2 outdoor propagation example report (PDF) — Outdoor propagation fiche (OutdoorAttenuation.report), the A-weighted downwind level at the receiver.

Before committing the fiche, result.plot() draws the same per-band attenuation breakdown interactively (the stacked figure of section 2).

BarrierInsertionLoss.report(path) boxes the mean insertion loss over the octave bands; a minimum required insertion loss supplied through requirement adds a PASS/FAIL verdict (a higher insertion loss is better).

import numpy as np
from phonometry import ReportMetadata, barrier_insertion_loss

freqs = np.array([63, 125, 250, 500, 1000, 2000, 4000, 8000], dtype=float)
result = barrier_insertion_loss(freqs, 1.0, 50.0, 4.0, 100.0, 1.5)
result.report(
    "barrier_insertion_loss.pdf",
    metadata=ReportMetadata(
        specimen="Roadside noise barrier, 4 m high",
        requirement=8.0,  # minimum required mean insertion loss
    ),
)

Barrier insertion loss example report (PDF) — Barrier insertion loss fiche (BarrierInsertionLoss.report), the mean insertion loss over the octave bands.

Here too result.plot() previews the insertion-loss spectrum of the fiche; the ground and barriers guide draws the same result against the exact half-plane and coherent-ground models.

References

Attenborough, K., & Van Renterghem, T. (2021). Predicting outdoor sound (2nd ed.). CRC Press. https://doi.org/10.1201/9780429470806Ground impedance models, the spherical-wave reflection coefficient behind the ground dip of section 2, and the meteorological effects on barriers.
International Organization for Standardization. (1993). Acoustics — Attenuation of sound during propagation outdoors — Part 1: Calculation of the absorption of sound by the atmosphere (ISO 9613-1:1993). The implemented pure-tone attenuation coefficient of section 1: alpha (Eq. (5)) with the oxygen and nitrogen relaxation frequencies (Eq. (3)/(4)), the Annex B humidity conversion and the exact Table 1 midbands (Eq. (6), Note 5).
International Organization for Standardization. (1996). Acoustics — Attenuation of sound during propagation outdoors — Part 2: General method of calculation (ISO 9613-2:1996). The implemented attenuation chain of section 2: the downwind receiver level (Eq. (3)/(4)) assembled from geometrical divergence (Eq. (7)), atmospheric absorption (Eq. (8)), the ground effect (Eq. (9), Table 3) with its A-weighted alternative (Eq. (10)/(11)), barrier screening (Eqs. (12)-(17)) and the meteorological correction (Eq. (21)/(22)). A revised edition was published in 2024; this module implements the 1996 method.
International Organization for Standardization. (2003). Acoustics — Measurement of sound absorption in a reverberation room (ISO 354:2003). Only the clause 8.1.2.1 conversion m = alpha/(10 lg e) behind air_attenuation_m; the reverberation-room method itself is covered in the Room Acoustics guide.
Kephalopoulos, S., Paviotti, M., & Anfosso-Lédée, F. (2012). Common noise assessment methods in Europe (CNOSSOS-EU) (EUR 25379 EN). Publications Office of the European Union. https://doi.org/10.2788/31776The common EU framework contrasted with ISO 9613-2 in section 3.
Maekawa, Z. (1968). Noise reduction by screens. Applied Acoustics, 1(3), 157-173. https://doi.org/10.1016/0003-682X(68)90020-0The screen-attenuation chart against Fresnel number that Eq. (14)'s diffraction term descends from.
Salomons, E. M. (2001). Computational atmospheric acoustics. Kluwer Academic Publishers. https://doi.org/10.1007/978-94-010-0660-6ISBN 978-1-4020-0390-5. The wave-based theory (parabolic equation, fast field program, refraction and turbulence) that quantifies what the favourable-condition assumption and the K_met factor approximate.

Created and maintained byJosé Manuel Requena Plens· GitHub· PyPI· All projects

Outdoor Sound Propagation

1. Atmospheric absorption (ISO 9613-1)

air_attenuation() / air_attenuation_m() parameters

A plottable result: atmospheric_attenuation()

2. General method of calculation (ISO 9613-2)

The four attenuation terms

Ground: the alternative A-weighted method

The image source behind the ground effect

Barrier and the screening term

outdoor_propagation_attenuation() parameters

Barrier fields

3. Scope, assumptions and pitfalls

What “favourable propagation conditions” means

Barrier pitfalls beyond the animation

ISO 9613-2 or CNOSSOS-EU?

4. Prediction reports (.report())

See also

References

`air_attenuation()` / `air_attenuation_m()` parameters

A plottable result: `atmospheric_attenuation()`

`Barrier` and the screening term

`outdoor_propagation_attenuation()` parameters

`Barrier` fields

4. Prediction reports (`.report()`)
