Source: https://jmrplens.github.io/phonometry/materials/absorbers/metamaterial-absorbers/ # Metamaterial Absorbers A porous blanket absorbs low frequencies only by growing thick: the [porous models](https://jmrplens.github.io/phonometry/materials/absorbers/porous-absorbers/) put the useful absorption where the layer is a fair fraction of the wavelength, which at 300 Hz means tens of centimetres. Acoustic metamaterial absorbers break that rule with resonance instead of bulk. A rigid panel of thin closed slits, each loaded by Helmholtz resonators, slows the sound inside the slit until a 3 cm panel resonates where a plain cavity of the same depth would need to be ten times deeper, and tuning the panel's internal losses against its leakage produces **perfect absorption**, $\alpha = 1$, at a design frequency where the panel is only $\lambda/38$ deep; published designs of the same family reach $\lambda/88$ (Jiménez et al. 2016). This guide covers the critical-coupling condition that makes perfect absorption possible, the slow-sound slit panel implemented in the library, and the classical resonant absorbers re-read through the same lens. ## 1. Critical coupling: when loss exactly balances leakage A rigidly backed absorber panel is a one-port resonator: sound enters through the face, rings inside, and either leaks back out or is dissipated. Its reflection coefficient over the complex frequency plane has a pole and a zero for each resonance. Two rates compete at the resonance: the **leakage rate**, how fast the stored energy radiates back into the incident medium, and the **intrinsic loss rate**, how fast the visco-thermal boundary layers of the structure dissipate it. - Too little loss (an almost lossless panel) and the energy mostly leaks back out: the reflection dips but recovers, $|R| > 0$. - Too much loss (an over-damped panel) and the wave barely enters: the panel starts to look rigid again, $|R| > 0$ from the other side. - When the two rates are **equal**, the zero of the reflection coefficient lands exactly on the real-frequency axis: at that frequency nothing is reflected, $R = 0$ and $\alpha = 1 - |R|^2 = 1$. This is the **critical-coupling condition** (Jiménez et al. 2017). In impedance terms the same statement reads $Z = Z_0$: the panel's surface impedance is purely resistive and matched to the incident medium, $\mathrm{Re}(Z)\cos\theta = Z_0$ and $\mathrm{Im}(Z) = 0$. The condition says nothing about thickness, which is exactly the loophole metamaterial absorbers exploit: make the resonance deep-subwavelength with slow sound, then tune the loss to match. The balance is delicate by design, and the library's `critical_coupling_design` solves it numerically rather than by trial: at the returned geometry the normalised impedance sits at $1 + 0j$ and the reflection at zero. ```python import numpy as np from phonometry import ( HelmholtzResonator, critical_coupling_design, slit_helmholtz_absorber, ) base = HelmholtzResonator( neck_length=1.0e-3, neck_side=3.0e-3, cavity_length=30.0e-3, cavity_side=27.0e-3, ) design = critical_coupling_design(300.0, base, lattice_step=3.0e-2, period=5.0e-2) f = np.array([300.0]) res = slit_helmholtz_absorber( f, design.resonator, slit_height=design.slit_height, lattice_step=3.0e-2, period=5.0e-2, ) z = res.normalized_impedance[0] print(round(z.real, 2), round(z.imag, 2)) # 1.0 -0.0 (matched) print(round(float(np.abs(res.reflection[0])), 3)) # 0.0 (reflection zero) ``` ## 2. The slow-sound slit panel A rigid panel of thin closed slits, each loaded on its upper wall by an array of Helmholtz resonators, is a locally reacting, deep-subwavelength absorber (Jiménez et al. 2017). The resonators slow the sound in the slit, pulling its resonance far below the quarter-wavelength frequency, and the visco-thermal losses of the sub-millimetre slit and the resonator necks make *perfect* absorption possible: when the intrinsic loss balances the leakage, the reflection zero lands on the real-frequency axis and $\alpha = 1$ (critical coupling). The panel transfer matrix is the chain $T = M_{\Delta l}\,\prod_n (M_\mathrm{s}\,M_\mathrm{HR}^{(n)}\,M_\mathrm{s})$; the rigidly-backed reflection factor is $R = (T_{11}\cos\theta - Z_0 T_{21})/(T_{11}\cos\theta + Z_0 T_{21})$ with $Z_0 = \rho_0 c_0 / S_0$. The slit uses the narrow-channel visco-thermal parameters and the square necks and cavities the rectangular-duct series of Stinson (1991). `critical_coupling_design` inverts the model, tuning the cavity length and the slit height so both matching conditions $\mathrm{Re}(Z)\cos\theta = Z_0$ and $\mathrm{Im}(Z) = 0$ hold. ```python import numpy as np from phonometry import ( HelmholtzResonator, critical_coupling_design, slit_helmholtz_absorber, ) base = HelmholtzResonator( neck_length=1.0e-3, neck_side=3.0e-3, cavity_length=30.0e-3, cavity_side=27.0e-3, ) design = critical_coupling_design(300.0, base, lattice_step=3.0e-2, period=5.0e-2) print(round(design.absorption, 4)) # ~1.0 (perfect absorption) f = np.linspace(150.0, 500.0, 700) res = slit_helmholtz_absorber( f, design.resonator, slit_height=design.slit_height, lattice_step=3.0e-2, period=5.0e-2, ) res.plot() # alpha(f) with |R| overlaid; peak = 1 at 300 Hz ``` The solved geometry is worth a look before the absorption curve. The resonator draws itself with `.plot()` and the panel result with `.plot_geometry()`, both dimensioned and to scale. *The four numbers that define the resonator: the neck side and length set the moving mass and most of the loss, the cavity side and length set the stiffness. `critical_coupling_design` keeps this cross-section and retunes the cavity length to place the resonance.*

Show the code for this figure

```python import matplotlib.pyplot as plt from phonometry import HelmholtzResonator resonator = HelmholtzResonator( neck_length=1.0e-3, neck_side=3.0e-3, cavity_length=30.0e-3, cavity_side=27.0e-3, ) resonator.plot() # dimensioned cross-section, to scale plt.show() ```

*One period of the solved design, to scale: the whole panel is 30 mm deep, $\lambda/38$ at 300 Hz, and the sub-millimetre slit that does all the absorbing is barely visible. That is exactly the point of the slow-sound mechanism.*

Show the code for this figure

```python import matplotlib.pyplot as plt from phonometry import HelmholtzResonator, critical_coupling_design, materials base = HelmholtzResonator( neck_length=1.0e-3, neck_side=3.0e-3, cavity_length=30.0e-3, cavity_side=27.0e-3, ) design = critical_coupling_design( 300.0, base, lattice_step=3.0e-2, period=5.0e-2, ) # The free function draws any resonator list; a slit_helmholtz_absorber # result retains its geometry, so res.plot_geometry() draws the same period. materials.plot_slit_absorber_geometry( [design.resonator], slit_height=design.slit_height, lattice_step=3.0e-2, period=5.0e-2, ) plt.show() ```

*One resonator, one slit, one loss-versus-leakage balance: the critically coupled design reaches $\alpha = 1$ at 300 Hz in a panel only $\lambda/38$ deep; detuning the slit height drops the peak below one.*

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import ( HelmholtzResonator, critical_coupling_design, slit_helmholtz_absorber, ) a, d, f0 = 3.0e-2, 5.0e-2, 300.0 base = HelmholtzResonator(1.0e-3, 3.0e-3, 30.0e-3, 27.0e-3) design = critical_coupling_design(f0, base, lattice_step=a, period=d) h0 = design.slit_height f = np.linspace(150.0, 500.0, 700) fig, ax = plt.subplots() for factor, label in [(1.0, "critically coupled"), (0.6, "narrow slit"), (1.7, "wide slit")]: res = slit_helmholtz_absorber( f, design.resonator, slit_height=factor * h0, lattice_step=a, period=d, ) ax.plot(f, res.absorption, label=label) ax.set(xlabel="Frequency [Hz]", ylabel="Absorption coefficient") ax.legend() plt.show() ```

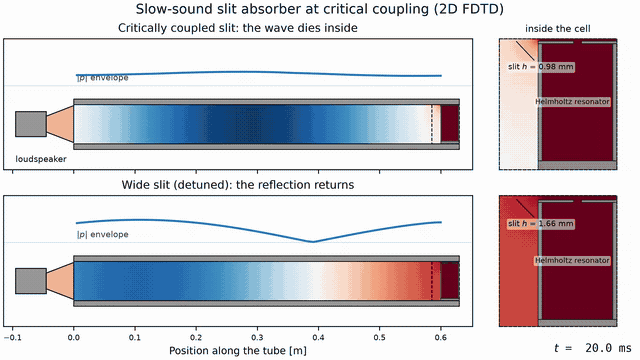

The clip below drives this exact cell in a virtual plane-wave tube: the sub-millimetre slit and its resonator are meshed on the FDTD grid and filled with the model's visco-thermal effective fluids. At the design slit height the standing wave collapses and the tone dies inside the panel; at 1.7 times the height the loss balance breaks and the reflection rebuilds it. [Watch the high-resolution video (WebM)](https://raw.githubusercontent.com/jmrplens/phonometry/main/.github/images/anim_fdtd_slit_absorber.webm) ## 3. How slow is the sound? The name of the mechanism is measurable. The transfer-matrix result retains the retrieved effective wavenumber of the loaded slit, so the phase speed inside it is one division away, and the comparison with the empty slit says everything about why the panel can be thin: ```python import numpy as np from phonometry import ( HelmholtzResonator, critical_coupling_design, slit_helmholtz_absorber, ) base = HelmholtzResonator( neck_length=1.0e-3, neck_side=3.0e-3, cavity_length=30.0e-3, cavity_side=27.0e-3, ) design = critical_coupling_design(300.0, base, lattice_step=3.0e-2, period=5.0e-2) res = slit_helmholtz_absorber( np.array([300.0]), design.resonator, slit_height=design.slit_height, lattice_step=3.0e-2, period=5.0e-2, ) # Phase speed of the slit mode at the design frequency, from k_eff. c_eff = 2 * np.pi * 300.0 / res.effective_wavenumber[0].real print(round(float(c_eff), 1)) # 37.0 [m/s] print(round(float(c_eff / 343.0), 2)) # 0.11 about a ninth of c0 # Quarter-wave resonance of the 30 mm depth: plain air vs the loaded slit. print(round(343.0 / (4 * 0.03))) # 2858 [Hz] empty slit print(round(float(c_eff) / (4 * 0.03))) # 308 [Hz] loaded slit ``` Below their resonance the shunt resonators add compliance to the slit without adding moving mass, and the phase speed falls to about a ninth of the free-air value. The 30 mm slit that would resonate at 2.9 kHz empty resonates at about 300 Hz loaded, which is precisely where the critical-coupling design of section 1 places its reflection zero. Slow sound moves the resonance into the deep-subwavelength regime; critical coupling then makes that resonance perfectly absorbing. ## 4. Classical resonant absorbers through the same lens Critical coupling is not exclusive to metamaterials; it is the organising principle hiding inside the classical resonant absorbers of the [porous and multilayer guide](https://jmrplens.github.io/phonometry/materials/absorbers/porous-absorbers/): - **The microperforated panel is a critically coupled absorber avant la lettre.** Maa's peak absorption $4r/(1+r)^2$ equals one exactly when the normalised resistance $r = 1$, which is the impedance-matching condition of section 1 stated for a locally reacting sheet. An MPP over a cavity tuned to $r = 1$ is doing precisely what the slit panel does, with the viscous loss provided by submillimetre holes instead of a submillimetre slit; what it cannot do is slow the sound. Its peak is the mass-spring resonance of the hole mass against the cavity compliance; conventional designs land the cavity around a tenth to a twentieth of a wavelength, so without the slow-sound compression the construction stops severalfold short of the loaded slit's depth. - **Membrane and decorated-membrane absorbers** trade the hole viscosity for the flexural loss of a limp sheet; the same loss-versus-leakage balance governs their peak, and adding masses to the membrane (the decorated membrane of the metamaterials literature) tunes the resonance downward the way the loading resonators tune the slit. They appear here as context only: the classical membrane layer is implemented in the [multilayer solver](https://jmrplens.github.io/phonometry/materials/absorbers/porous-absorbers/), and the decorated membrane is not implemented in the library. - **The design question is always the same.** Pick the resonance with the geometry, then match the loss to the leakage. The porous-layer models ask "how thick"; the resonant family asks "how lossy", and `critical_coupling_design` answers it for the slit panel exactly. The price of resonance is bandwidth: a critically coupled peak is narrow, and away from it the panel reflects like the rigid wall it almost is. Broadband metamaterial absorbers stack detuned cells side by side (the iridescent absorber of Jiménez et al. 2017 chains resonators of graded dimensions for exactly this reason); in the library the spectrum of any candidate geometry comes from `slit_helmholtz_absorber` over a frequency array, so a graded design is a loop over cells. ## See also - [Porous and Multilayer Absorbers](https://jmrplens.github.io/phonometry/materials/absorbers/porous-absorbers/): the equivalent-fluid and resonant layers of the classical family, including the Maa microperforated panel that section 4 re-reads. - [Metadiffusers](https://jmrplens.github.io/phonometry/materials/diffusers/metadiffusers/): the same slit and resonator cell tuned for controlled reflection phase instead of perfect absorption; its ternary designs borrow the critically coupled slit as their `0` state. - [Impedance Tube](https://jmrplens.github.io/phonometry/materials/absorbers/impedance-tube/): the normal-incidence measurement a built panel would be verified in, and the virtual FDTD tube behind the animation above. - [Airflow Resistance](https://jmrplens.github.io/phonometry/materials/absorbers/airflow-resistance/): the viscous physics of the narrow channels, measured on the bulk material. - API reference: [`materials.absorbers.slow_sound`](https://jmrplens.github.io/phonometry/reference/api/materials/slow-sound/). ## References - Jiménez, N., Groby, J.-P., Pagneux, V., & Romero-García, V. (2017). Iridescent perfect absorption in critically-coupled acoustic metamaterials using the transfer matrix method. *Applied Sciences*, 7(6), 618. [doi:10.3390/app7060618](https://doi.org/10.3390/app7060618). The slit + Helmholtz-resonator transfer-matrix model and the critical-coupling condition implemented in `slit_helmholtz_absorber`, plus the graded (iridescent) broadband chains of section 4. - Jiménez, N., Huang, W., Romero-García, V., Pagneux, V., & Groby, J.-P. (2016). Ultra-thin metamaterial for perfect and quasi-omnidirectional sound absorption. *Applied Physics Letters*, 109(12), 121902. [doi:10.1063/1.4962328](https://doi.org/10.1063/1.4962328). The resonator impedance (Eq. A23) and its radiation end corrections (Eqs. A24-A27), and the published $\lambda/88$ perfect absorber cited in the introduction. - Stinson, M. R. (1991). The propagation of plane sound waves in narrow and wide circular tubes, and generalization to uniform tubes of arbitrary cross-sectional shape. *Journal of the Acoustical Society of America*, 89(2), 550-558. [doi:10.1121/1.400379](https://doi.org/10.1121/1.400379). The visco-thermal effective parameters of the slit and the square necks and cavities. - Maa, D.-Y. (1998). Potential of microperforated panel absorber. *Journal of the Acoustical Society of America*, 104(5), 2861-2866. [doi:10.1121/1.423870](https://doi.org/10.1121/1.423870). The MPP impedance and design formulas whose $r = 1$ peak condition section 4 identifies with critical coupling. - Cox, T. J., & D'Antonio, P. (2017). *Acoustic absorbers and diffusers: Theory, design and application* (3rd ed.). CRC Press. ISBN 978-1-4987-4099-9. [doi:10.1201/9781315369211](https://doi.org/10.1201/9781315369211). The classical resonant-absorber designs the metamaterial family extends. - Jiménez, N., Umnova, O., & Groby, J.-P. (Eds.). (2021). *Acoustic waves in periodic structures, metamaterials, and porous media* (Topics in Applied Physics, Vol. 143). Springer. [doi:10.1007/978-3-030-84300-7](https://doi.org/10.1007/978-3-030-84300-7). The book-length treatment of critical coupling, slow sound and resonant metamaterial absorbers. ## Standards No standard governs these prediction models; they are journal methods (Jiménez et al. 2016/2017; Stinson 1991) implemented clean-room from the cited sources. The model is pinned to its exact analytic anchors: the critical-coupling design reaches $\alpha = 1$ at the design frequency, the slit and square-duct effective densities reduce to the Poiseuille flow resistivities $12\eta/h^2$ and $28.454\eta/w^2$ as $\omega \to 0$, and the effective parameters tend to $\rho_0$, $\kappa_0$ as the boundary layers vanish. A built panel would be measured in the [impedance tube](https://jmrplens.github.io/phonometry/materials/absorbers/impedance-tube/) (ISO 10534-2) or the [reverberation room](https://jmrplens.github.io/phonometry/materials/absorbers/absorption-measurement/) (ISO 354) — nothing here performs any of that verification, and the roughness of a printed slit, the frame, the mounting and the finite panel size are all outside the model. Misprints found in the source papers during this work are recorded in the [errata registry](https://jmrplens.github.io/phonometry/reference/errata/).
