Source: https://jmrplens.github.io/phonometry/io/audio-files/ # Reading and writing measurement audio A measurement WAV is only interpretable together with three things the samples do not carry: the sample rate, the calibration that turns digital full scale into pascals, and the provenance that says where and when the recording was made. `phonometry.io` treats all of that as part of the file's meaning. `read()` returns a `Signal` — samples plus rate, calibration, channel labels and `bext` provenance in one immutable object — and every function on this page follows the same defaults: the native sample rate is kept, channels are never mixed down, and no sample is ever normalized, because each of those "conveniences" silently destroys the level or the timing a measurement depends on. The type is `phonometry.io.Signal`. Write it `io.Signal` after `from phonometry import io`, or `phonometry.Signal`, which is the same class: the top level publishes it because seven packages accept one, and those are the two supported spellings. The module it is defined in is private, and reaching into it gets the same object back, with nothing promising it will stay reachable that way. The base install (NumPy and SciPy alone) reads the whole linear WAV family that measurement equipment writes: PCM at any depth including 24-bit, IEEE float, `WAVE_FORMAT_EXTENSIBLE` with its channel mask, BWF `bext` metadata, and RF64/BW64 recordings past 4 GiB. The `[audio]` extra adds FLAC, AIFF, Ogg Vorbis, Opus, MP3 and the compressed WAV codecs some meters use for listening copies. Nothing metrological requires the extra. ## Reading a measurement `read()` takes a path and returns the `Signal`. The file here is written first so the page runs; in a real workflow it comes from the instrument. ```python import numpy as np from phonometry import io fs = 48000 # recording: a stand-in for the sound level meter's WAV, synthesized so # the guide runs; in a real measurement this file comes from the meter. rng = np.random.default_rng(11) recording = 0.02 * rng.standard_normal(10 * fs) io.write("measurement.wav", recording, fs, subtype="PCM_24") sig = io.read("measurement.wav") print(sig.fs, sig.n_channels, f"{sig.duration:.1f} s") # 48000 1 10.0 s print(sig.source.format_name, sig.source.bit_depth) # PCM 24 ``` The object stands in for the bare array anywhere: `np.asarray(sig)` yields the samples (1-D for one channel, `(channels, samples)` for several), so every `(x, fs, ...)` function of the library already takes it in place of the array, with the rate still passed alongside. Much of the library goes further and takes the `Signal` itself — the object already knows its rate and its calibration, and asking you to repeat either is asking for a transcription error. The object supplies the rate when `fs` is omitted, and an explicit `fs` that disagrees with it raises rather than being arbitrated. That covers the level functions (`leq`, `laeq`, `ln_levels`, `sel`, `lc_peak`, `sound_exposure` and `lex_8h`), the filters (`octave_filter`, `weighting_filter`, `time_weighting`, `linkwitz_riley`, `parametric_eq`, and the block-processing objects `OctaveFilterBank`, `WeightingFilter`, `TimeWeighting` and `ParametricEQ`), and the estimators of `signals`: spectra (`power_spectral_density`, `cross_spectral_density`, `coherent_output_spectrum`, `multitaper_psd`, `miso_coherence`), time-frequency (`spectrogram`, `zoom_fft`), correlation and delay (`correlation`, `time_delay`, `impulse_response_delay`, `align_impulse_responses`), envelope (`envelope`, `envelope_spectrum`), cepstrum (`cepstrum`, `lifter`, `echo_detection`), `time_synchronous_average`, `regularized_inverse_filter`, `resample_signal` and `fractional_delay`, together with the data-qualification tests of `metrology` (`stationarity_test`, `level_crossing_rate`, `peak_statistics`). A calibrated `Signal` is *processed* in pascals. That is one rule but not one unit: what the calibration buys depends on what the call hands back. | What the call returns | Units under a calibrated `Signal` | | :--- | :--- | | A waveform: `weighting_filter`, `linkwitz_riley`, `parametric_eq`, `envelope`, `time_synchronous_average`, `resample_signal`, `fractional_delay`, `align_impulse_responses` | Pa | | A squared envelope: `time_weighting` | Pa² | | A level: `octave_filter`, `OctaveFilterBank`, and the level functions | dB SPL re 20 µPa | | A spectral density: `power_spectral_density`, `cross_spectral_density`, `coherent_output_spectrum`, `multitaper_psd`, `spectrogram`, `miso_coherence` | Pa²/Hz, or Pa² under `scaling='spectrum'` | | A correlation: `correlation` | Pa² | | An amplitude spectrum: `zoom_fft`, `envelope_spectrum` | Pa | | An inverse filter: `regularized_inverse_filter` | 1/Pa | Ratios and times are scale-free and do not move at all: every coherence, every normalized correlation coefficient, every phase, and every delay in seconds or samples, which is why `time_delay`, `impulse_response_delay` and `echo_detection` return for a calibrated `Signal` exactly what they return for the raw record. The cepstrum is the one odd case, being a log-spectrum transform: the factor lands entirely on the zeroth quefrency and leaves every other one untouched, so `lifter` shifts its two dB spectra by 20 lg of the factor and moves nothing else. `level_crossing_rate` is the one that asks something of you: its `levels` are compared against the samples, so for a calibrated `Signal` they have to be given in pascals. The `dbfs` routes are the deliberate exception: full scale is their reference, so they ignore the factor. For the same reason, do not chain a filter into a dBFS reading: `leq(weighting_filter(sig, curve="A"), dbfs=True)` measures pascals on a scale that claims to be full-scale referenced, and comes out `20 log10(factor)` off. That is what `laeq(sig, dbfs=True)` is for, which weights the raw samples before reading them. Integer samples are scaled by exactly $2^{B-1}$ for a $B$-bit container: a power of two, so the conversion to float64 is exact in binary floating point, and the same convention as libsndfile and MATLAB. The eternal 32767-versus-32768 debate is moot here for a better reason than taste: the calibrator tone is read through this same reader, so any fixed scaling constant divides out of every calibrated level, exactly. `info()` answers from the headers alone — no sample is decoded, so it is instant on a 12-hour RF64, and it still describes a compressed WAV that `read()` would need the extra for: ```python meta = io.info("measurement.wav") print(meta.container, meta.format_name, meta.bit_depth) # WAV PCM 24 print(meta.frames, f"{meta.duration:.1f} s") # 480000 10.0 s ``` ## Calibrating from the calibrator take The [calibration guide](https://jmrplens.github.io/phonometry/signals/metrology/calibration/) derives the sensitivity factor from a recording of the calibrator tone; the only new rule here is that **both files go through the same reader**. Then the factor rides on the `Signal` and the level functions use it on their own: ```python from phonometry import metrology, signals # calibrator.wav: the 94 dB calibrator take, synthesized so the guide runs # (tone at -10 dBFS RMS); in a real session, record your calibrator. t = np.arange(5 * fs) / fs io.write("calibrator.wav", np.sqrt(2) * 0.316 * np.sin(2 * np.pi * 1000 * t), fs, subtype="PCM_24") cal_take = io.read("calibrator.wav") cal = metrology.sensitivity(cal_take, target_spl=94.0) print(f"S = {cal:.3f} Pa per full-scale unit") # 3.172 sig = io.read("measurement.wav", calibration_factor=cal) print(f"Leq = {float(signals.leq(sig)):.1f} dB") # 70.0 ``` No `calibration_factor` argument, no `fs` argument at the level call: the `Signal` carries both, and the two are carried under different rules. An explicit `calibration_factor` still wins over the one the object carries — the caller knows more than an object, after a re-calibration or for a deliberate what-if. An explicit `fs` does not win: the rate is a fact of the recording rather than a preference, so a value that disagrees with the object's raises instead of overriding it, and only a value that agrees is accepted. A bare array is refused by name rather than guessed at by the functions that need a rate at all, which `leq` does not: it integrates the whole record, so it never had an `fs` argument to omit. Both rules hold for every function in the library that consumes a recording, with four exemptions to the calibration half. Each is a case where pascals would be the wrong thing to hand the function, and each says so in its own docstring: - **Referenced to digital full scale.** The EBU R 128 family (`program_loudness` and its parts), `dynamic_range` and `idle_channel_noise` count from a full-scale sine rather than from 20 µPa. Scaling their samples would move every reading by `20 lg(factor)` and still call it LUFS or dBFS. - **Not a pressure.** A whole-body vibration record is an acceleration in m/s² and a heavy-impact record is a force in newtons, so a digital-to-pascal factor is not a unit conversion either of them wants. - **Produces the factor.** `metrology.sensitivity` is what a factor comes *from*, as in the snippet above; applying one first would calibrate the calibration. - **A `dbfs=True` path**, for the same reason as the first. Everything else takes it, including the underwater metrics: their reference of 1 µPa changes where the decibel is counted from, not what unit the samples have to be in. ### The same chain on a real meter's file The repository versions a real calibration take for exactly this workflow: `tests/data/audio/xl2/calibration_113_7dB.wav`, recorded by an NTi Audio XL2 sound level meter during a road traffic pass-by campaign at the University of Antwerp (CC BY 4.0; provenance, licence and attribution in `tests/data/audio/README.md`). Being an instrument, the meter wrote its own `bext` chunk and declared its digital full scale in it. That declaration plus the file's RMS is the whole calibration chain, and it has to land on the level the dataset publishes for this take: 113.7 dB. ```python import pathlib import phonometry from phonometry import io, signals # The committed take lives in the repository, so this runs from a checkout # (or editable install); with your own meter's WAV, pass its path directly. repo = pathlib.Path(phonometry.__file__).resolve().parents[2] xl2_take = io.read(repo / "tests/data/audio/xl2/calibration_113_7dB.wav") print(xl2_take.provenance.originator) # NTi Audio XL2 A2A-17367-E0 declaration = xl2_take.provenance.description.splitlines()[0] print(declaration) # 0dBFS = 129.3 dBSPL full_scale_spl = float(declaration.split()[2]) xl2_cal = 2e-5 * 10 ** (full_scale_spl / 20) # what 0 dBFS is in pascals xl2_leq = float(signals.leq(xl2_take, calibration_factor=xl2_cal)) print(f"Leq = {xl2_leq:.1f} dB") # 113.7, the published level ``` No hand-typed sensitivity anywhere: the instrument's file carried its own full scale, the reader surfaced it, and the published 113.7 dB came out the other end. A recording made by the same meter is calibrated with the same two lines — which is why both files going through the same reader is the one rule that matters. The figure below is this page in one image: the same API wrote a 24-bit BWF with its `bext` chunk and its calibration sidecar, read it back, and the resulting `Signal` drew its calibrated waveform next to the card of what travelled with the samples. *What `read()` returns besides samples. The waveform is in pascals because the sidecar's calibration was applied on read; the card is the `bext` provenance of EBU Tech 3285 — who recorded it, when, and at which sample since midnight — plus the container facts and the calibration source. None of it had to be typed back in.*

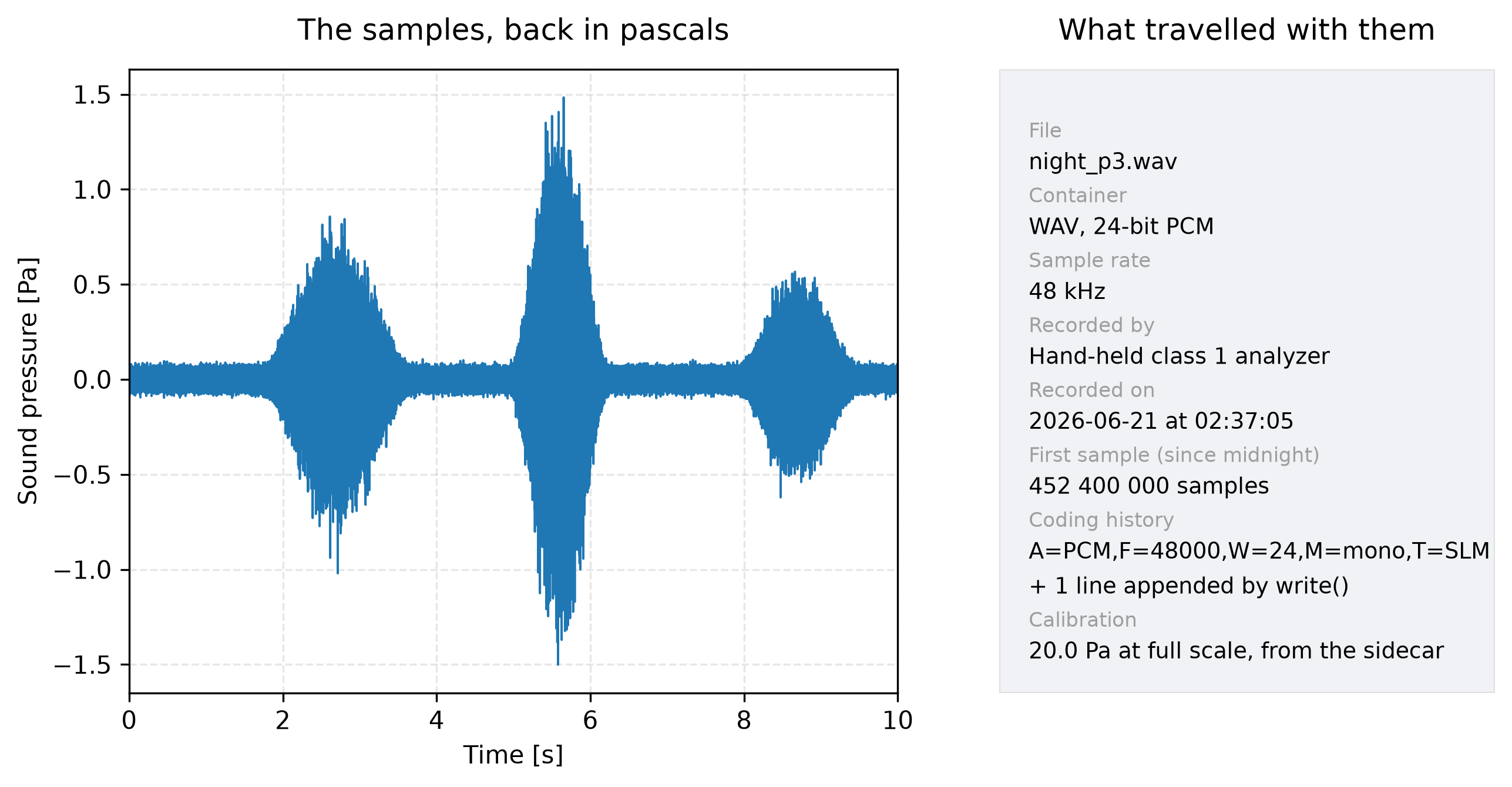

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import io fig_fs = 48000 fig_rng = np.random.default_rng(2026) night = 0.0012 * fig_rng.standard_normal(10 * fig_fs) for start_s, length_s, amplitude in ((1.6, 2.2, 0.011), (4.9, 1.4, 0.020), (7.8, 1.8, 0.008)): piece = slice(int(start_s * fig_fs), int(start_s * fig_fs) + int(length_s * fig_fs)) envelope = np.hanning(int(length_s * fig_fs)) night[piece] += amplitude * envelope * fig_rng.standard_normal(envelope.size) bext = io.BroadcastMetadata( description="Night monitoring, facade position P3", originator="Hand-held class 1 analyzer", originator_reference="ESPHN20260621023705000012", origination_date="2026-06-21", origination_time="02:37:05", time_reference=(2 * 3600 + 37 * 60 + 5) * fig_fs, version=2, umid=None, loudness_value=None, loudness_range=None, max_true_peak_level=None, max_momentary_loudness=None, max_short_term_loudness=None, coding_history="A=PCM,F=48000,W=24,M=mono,T=SLM", ) io.write("night_p3.wav", io.Signal(data=night, fs=fig_fs, calibration_factor=20.0), subtype="PCM_24", bext=bext, sidecar=True) night_sig = io.read("night_p3.wav") # calibrated by the sidecar ax = night_sig.plot() # pascals, because it is calibrated print(night_sig.provenance.originator, night_sig.provenance.origination_time) plt.show() ```

## The lossy warning, and the XL2 story behind it By default an NTi XL2 records WAV — compressed to 4-bit ADPCM. The manual is explicit about the intent: the compressed recording is a listening record, and linear WAV (with the Extended Acoustic Pack) is what is "required for post-processing on the PC". The distinction matters because a lossy decoder reconstructs an *approximation* of the waveform: a level computed from it is not defensible as a measurement, however plausible the number looks. So lossy sources are read, not refused — a listening copy is still worth opening — but never silently: ```python import soundfile as sf # What a meter's default listening copy looks like: 4-bit IMA ADPCM in a # WAV container. Written here with soundfile to have one to read. sf.write("voice_note.wav", np.asarray(sig)[: 2 * fs], fs, subtype="IMA_ADPCM") note = io.read("voice_note.wav") # emits LossyCompressionWarning print(note.source.lossy) # True: the fact outlives the warning ``` The `LossyCompressionWarning` fires for MP3, Ogg Vorbis, Opus and the compressed WAV codecs alike, and `source.lossy` stays stamped on the signal so the fact survives after the warning has scrolled away. Writing lossy formats is not in the API at all: there is no measurement reason to produce one, and a library whose job is preserving levels should not make it easy. Two adjacent cases the module deliberately does not cover: dictaphone AAC/M4A, where the honest route is a one-line external conversion (`ffmpeg -i note.m4a note.wav`, then `read("note.wav")` — with the same caveat, since AAC is lossy too); and DAQ formats that are not audio at all (TDMS from LabVIEW hardware, UFF from modal analysis), which have their own Python readers (`npTDMS`, `pyuff`). ## Streaming an overnight recording A night of monitoring at 48 kHz/24-bit is gigabytes; as float64 it is ~5.5 GiB per stereo hour, which no analysis needs in memory at once. `read_blocks()` yields bare float64 blocks, not `Signal` objects: the same sample values as `np.asarray(read(...))`, with the same scaling and channel convention (base-install seek-and-decode for linear WAV including RF64), but no calibration or provenance riding along. Apply the calibration factor where the level is computed, as the loop below does; the stateful filters of [block processing](https://jmrplens.github.io/phonometry/signals/filters/block-processing/) consume the stream unchanged: ```python from phonometry import filters weighter = filters.WeightingFilter(fs, "A", stateful=True) total_energy = 0.0 total_samples = 0 for block in io.read_blocks("measurement.wav", block_size=1 << 16): weighted = weighter.filter(block) total_energy += float(np.sum(weighted ** 2)) total_samples += weighted.shape[-1] streamed = 10 * np.log10((cal ** 2 * total_energy / total_samples) / (2e-5) ** 2) whole = float(signals.leq( filters.weighting_filter(np.asarray(sig), fs, curve="A"), calibration_factor=cal)) print(f"streamed {streamed:.4f} dB, whole file {whole:.4f} dB") # streamed 66.4200 dB, whole file 66.4200 dB ``` The two numbers are not close — they are identical, to the last bit, because a stateful filter carries its state across block boundaries and the stream contributes every sample exactly once. Both sides run the same default design, since block processing no longer costs the weighting filter anything (the [weighting guide](https://jmrplens.github.io/phonometry/signals/levels/weighting/) has the detail). The same construction drives an `OctaveFilterBank` with `BlockProcessing(stateful=True)`, band by band. ## Writing a BWF with its provenance `write()` produces WAV/BWF — PCM 16, 24 (packed in-house; SciPy cannot), 32, float 32/64 — and promotes to RF64 automatically past 4 GiB. Three promises, each the opposite of a documented ecosystem default: it never normalizes, it never resamples, and clipping is never silent — samples past full scale on an integer subtype are saturated, counted and reported with a `ClippingWarning` naming the count and the peak overshoot in dBFS. Optional `dither="tpdf"` adds one-LSB triangular dither when quantising to `PCM_16` — the Lipshitz, Wannamaker and Vanderkooy prescription for 16-bit listening copies — and is refused elsewhere, because dither only adds noise to data that faces numerical analysis rather than ears. Provenance is first-class. A `Signal`'s own `bext` is carried by default when it has one; a `BroadcastMetadata` you build is written field by field at its EBU Tech 3285 offsets; and `bext="loudness"` additionally measures the five version-2 loudness values — programme loudness, loudness range, maximum true peak, momentary and short-term maxima — with the library's own [ITU-R BS.1770 implementation](https://jmrplens.github.io/phonometry/devices/broadcast/program-loudness/) on the samples being written. Every written chunk's `CodingHistory` is extended, never replaced, with the EBU R98-formatted line describing this coding step. ```python out = io.Signal(data=np.asarray(sig), fs=fs, calibration_factor=cal) io.write("delivery.wav", out, subtype="PCM_24", bext="loudness", sidecar=True) delivered = io.info("delivery.wav") print(delivered.bext.loudness_value) # -30.85 (LUFS, measured) print(delivered.bext.max_true_peak_level) # -20.08 (dBTP, measured) ``` ## The sidecar: how the calibration travels No audio container has a field for a microphone calibration — `bext` has none, and its loudness values are programme loudness, not sensitivity. The industry answer is proprietary companions (a meter's report text, a manufacturer's project file); seismology's answer, a standardized sidecar beside the waveform, is the one worth copying. `write(sidecar=True)` (or `write_sidecar()` for an existing file) puts a small versioned JSON at `
