# Loudness
Level metrics tell you how much *sound pressure* there is; loudness tells you
how loud a listener actually *perceives* it. This page covers the three
loudness model families phonometry ships: the Zwicker method (ISO 532-1), the
Moore-Glasberg methods (ISO 532-2/3) and the Sottek Hearing Model loudness
(ECMA-418-2), plus the equal-loudness contours of pure tones (ISO 226).
Sharpness, tonality and roughness live in
[Sound Quality Metrics](https://jmrplens.github.io/phonometry/guides/sound-quality/); speech metrics in
[Speech Transmission Index](https://jmrplens.github.io/phonometry/guides/speech-transmission/) and
[Speech Intelligibility Index](https://jmrplens.github.io/phonometry/guides/speech-intelligibility/).
## Loudness in sones (ISO 532-1, Zwicker)
Decibels compress perception: 10 dB more reads as *twice as loud*, and two
sounds with the same dB(A) can differ audibly depending on how their energy
spreads over the ear's **critical bands**. The Zwicker method models the
hearing chain explicitly (outer/middle-ear transmission, critical-band
analysis on the 24 Bark scale, level-dependent masking slopes) and outputs
**loudness N in sones**, a ratio scale: 4 sones is twice as loud as 2 sones.
By definition a 1 kHz tone at 40 dB SPL is 1 sone, and every +10 phon
doubles the sone value.

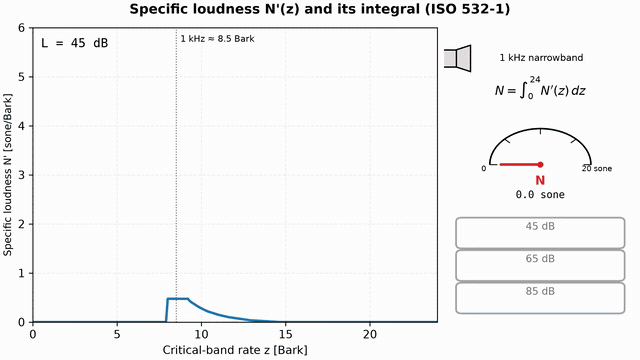

The animation below shows that integration at work: as the band level of a
1 kHz narrowband sound steps up, the specific-loudness pattern N'(z) grows
along the Bark axis and the area under it is the total loudness in sones.
[Watch the high-resolution video (WebM)](https://raw.githubusercontent.com/jmrplens/phonometry/main/.github/images/anim_specific_loudness.webm)
```python
import numpy as np
from phonometry import psychoacoustics
# A raw recording plus its calibration so the guide runs standalone
fs = 48000
x = 0.2 * np.sin(2 * np.pi * 1000 * np.arange(fs) / fs) # any recording (digital units)
sens = 1.0 # calibration_factor to pascals
levels_28 = np.full(28, 60.0) # 28 one-third-octave band levels (dB)
# From a raw recording: calibration_factor scales digital units to Pa
res = psychoacoustics.loudness_zwicker(x, fs, field="free", calibration_factor=sens)
print(f"N = {res.loudness:.1f} sone ({res.loudness_level:.0f} phon)") # 13.1 sone (77 phon)
# Time-varying signals: percentile loudness N5 is the reporting standard
res = psychoacoustics.loudness_zwicker(x, fs) # stationary=False (default)
print(f"{res.n5:.1f} {res.n10:.1f} {res.loudness:.1f}") # 13.1 13.1 13.1 — N5, N10, Nmax
# From 28 one-third-octave band levels (25 Hz .. 12.5 kHz)
res = psychoacoustics.loudness_zwicker_from_spectrum(levels_28, field="diffuse")
res.plot() # N'(z) over the Bark scale — the specific-loudness pattern (needs matplotlib)
```
*Same band level, very different loudness: energy spread over many critical
bands (red) sums to far more sones than the same level concentrated in one
band (blue). The area under N'(z) is the total loudness.*
Show the code for this figure
```python
import matplotlib.pyplot as plt
import numpy as np
from phonometry import psychoacoustics
levels_28 = np.full(28, 60.0) # 28 one-third-octave band levels (dB)
# From 28 one-third-octave band levels (25 Hz .. 12.5 kHz)
res = psychoacoustics.loudness_zwicker_from_spectrum(levels_28, field="diffuse")
# One line — the specific-loudness pattern N'(z) straight from the result:
res.plot()
plt.show()
# Or reproduce the figure by hand — two patterns of equal band level (60 dB),
# energy spread over many critical bands vs concentrated in the 1 kHz band:
narrow = psychoacoustics.loudness_zwicker_from_spectrum(np.r_[np.full(16, -60.0), 60.0, np.full(11, -60.0)])
broad = psychoacoustics.loudness_zwicker_from_spectrum(np.full(28, 60.0))
z = np.arange(1, narrow.specific.size + 1) * 0.1 # Bark axis
fig, ax = plt.subplots()
for r, color, label in [
(broad, "#ff7f0e", f"Broadband N = {broad.loudness:.1f} sone"),
(narrow, "#1f77b4", f"1 kHz narrowband N = {narrow.loudness:.1f} sone"),
]:
ax.fill_between(z, r.specific, color=color, alpha=0.3)
ax.plot(z, r.specific, color=color, label=label)
ax.set_xlabel("Critical-band rate z [Bark]")
ax.set_ylabel("Specific loudness N' [sone/Bark]")
ax.legend()
plt.show()
```
The implementation is a clean-room port of the standard's **normative
reference program** (Annex A.4): all twelve data tables are digit-exact and
the full Annex B validation set runs in CI: the stationary test case
reproduces the published value to every printed digit, and the tone-pulse
N(t) traces stay inside the standard's per-sample 5 % tolerance band.
### `loudness_zwicker()` parameters
| Parameter | Type | Units | Range / default | Notes |
| :--- | :--- | :--- | :--- | :--- |
| `x` | 1D array | Pa (after calibration) | ≥ 8 ms at 48 kHz | Resampled internally to 48 kHz if needed |
| `fs` | int | Hz | > 0 | |
| `field` | str | — | `'free'` (default) / `'diffuse'` | Sound-field correction (Table A.5) |
| `stationary` | bool | — | default `False` | `True`: single N from the averaged spectrum |
| `calibration_factor` | float | Pa per digital unit | default `1.0` | From `sensitivity()` |
Returns a `ZwickerLoudness` dataclass: `loudness` (N, sones), `loudness_level`
(phon), `specific` (N′(z), 240 bins of 0.1 Bark), and for time-varying runs
`n5`, `n10`, `time`, `loudness_vs_time` (500 Hz trace).
### ISO 532-1 report (`.report()`)
`ZwickerLoudness.report(path)` renders a one-page PDF fiche laid out like an
accredited loudness report: a standard-basis line, an optional metadata header
block, a compact metrics table (total loudness *N*, loudness level *L*N,
and the *N*5/*N*10 percentiles for a time-varying result)
beside the specific-loudness pattern *N*′(z) (the result's own `.plot()`), the
boxed `N = X sone (LN = Y phon)` single number, an optional verdict row and a
footer with the fixed disclaimer. It uses the same `ReportMetadata` container
(documented under [Field insulation](https://jmrplens.github.io/phonometry/guides/insulation-field/#report-metadata-reportmetadata))
and rendering engine as the ISO 717 insulation fiche; a supplied `requirement`
is read as the maximum permitted loudness in sone (a lower loudness passes).
Rendering needs reportlab (`pip install phonometry[report]`); only
`engine="reportlab"` is supported. The fiche renders in English by default;
pass `language="es"` for a Spanish fiche (translated fixed strings and a comma
decimal separator), e.g. `res.report("loudness_fiche_es.pdf", language="es")`.
```python
from phonometry import psychoacoustics, ReportMetadata
res = psychoacoustics.loudness_zwicker_from_spectrum(levels_28, field="free")
res.report(
"loudness_fiche.pdf",
metadata=ReportMetadata(
specimen="Household appliance, steady operating noise",
measurement_standard="ISO 532-1 method 1",
laboratory="Phonometry Reference Laboratory",
requirement=12.0, # maximum permitted loudness (sone)
),
) # N (sone) and LN (phon)
```
The example fiche, regenerated with `make reports`, is kept rendered in the
repository. Click the preview to open the PDF:
[](https://raw.githubusercontent.com/jmrplens/phonometry/main/.github/reports/iso532_loudness_example.pdf)
*Zwicker loudness fiche (`ZwickerLoudness.report`), N in sone with LN in phon.*
## Loudness level of pure tones (ISO 226:2023)
The normal equal-loudness-level contours relate the SPL of a pure tone to its
perceived *loudness level* in phons (the SPL of an equally loud 1 kHz tone).
`equal_loudness_contour(phon)` evaluates ISO 226:2023 Formula (1) at the 29
preferred third-octave frequencies of Table 1, `loudness_level(spl, frequency)`
is the exact inverse (Formula 2), and `hearing_threshold()` returns the
threshold-of-hearing column. `equal_loudness_contours(phons)` bundles a whole
family of contours with the threshold into a plottable `EqualLoudnessContours`
result:
```python
from phonometry import psychoacoustics
freqs, spl = psychoacoustics.equal_loudness_contour(40.0) # the classic 40-phon contour
phon = psychoacoustics.loudness_level(73.0, 63.0) # 73 dB @ 63 Hz -> 40 phon
# The whole family (20-90 phon by default) plus the hearing threshold:
res = psychoacoustics.equal_loudness_contours()
res.plot() # the iconic ISO 226 chart (needs matplotlib)
```
ISO 226:2023 defines the contours from 20 to 90 phon; above 80 phon the formula is valid only up to 4 kHz, so the 90 phon contour stops there and no higher contours are defined.
Show the code for this figure
```python
import matplotlib.pyplot as plt
from phonometry import psychoacoustics
# One line — the contour family straight from the result:
res = psychoacoustics.equal_loudness_contours()
res.plot()
plt.show()
# Or reproduce the figure by hand — ISO 226:2023 Formula (1) at the 29
# preferred frequencies of Table 1, one contour per loudness level:
fig, ax = plt.subplots()
for phon in [20, 40, 60, 80, 90]:
freqs, spl = psychoacoustics.equal_loudness_contour(float(phon))
ax.semilogx(freqs, spl, color="C0")
ax.annotate(f"{phon} phon", xy=(1000, phon + 1), fontsize=9)
ft, tf = psychoacoustics.hearing_threshold()
ax.semilogx(ft, tf, "--", color="C1", label="Hearing threshold $T_f$")
ax.set(xlabel="Frequency [Hz]", ylabel="Sound pressure level [dB re 20 µPa]")
ax.grid(True, which="both", alpha=0.3)
ax.legend()
plt.show()
```
Validity per clause 4.1: 20-90 phon (80 phon above 4 kHz); the implementation
is verified against the Annex B tables in CI. Note this is the loudness of
*pure tones*; the loudness of arbitrary signals in sones is what the ISO 532
models on this page compute.
## Advanced loudness models
ISO 532-1 above is one of the **three** loudness model families phonometry
ships (four methods in the table below). This
section adds the **Moore-Glasberg** loudness of ISO 532-2/532-3 and the
**Sottek Hearing Model** loudness of ECMA-418-2:2025, whose shared auditory
front-end also powers the tonality and roughness metrics of
[Sound Quality Metrics](https://jmrplens.github.io/phonometry/guides/sound-quality/).
### Choosing a loudness model
| Model | Standard | Stationary / time-varying | Output | When to use |
| :--- | :--- | :--- | :--- | :--- |
| Zwicker | ISO 532-1:2017 | both | sone | Reference method; one-third-octave input; fast and widely cited |
| Moore-Glasberg | ISO 532-2:2017 | stationary | sone | roex excitation pattern; better for tones and explicit binaural summation |
| Moore-Glasberg-Schlittenlacher | ISO 532-3:2023 | time-varying | sone (STL/LTL) | Time-varying loudness with short-/long-term traces and the peak N_max |
| Sottek (Hearing Model) | ECMA-418-2:2025 | time-varying | sone_HMS | Shares one auditory front-end with the ECMA tonality and roughness metrics |
All four methods are anchored so a **1 kHz tone at 40 dB SPL is ≈ 1 sone**; the values
are not interchangeable digit-for-digit because the models differ in their
auditory filters and their loudness summation.
*The three models agree at the 1 sone / 40 dB anchor and diverge with level:
Zwicker doubles the sone value every +10 phon, while the Sottek model grows
more slowly (about 1.65× per 10 dB), an intrinsic difference between the
auditory summations, not a calibration error.*
Show the code for this figure
```python
import matplotlib.pyplot as plt
import numpy as np
from phonometry import psychoacoustics
# 1 kHz tone, 20..80 dB SPL: all three models pass through 1 sone at 40 dB
fs = 48000
t = np.arange(fs) / fs
levels = np.arange(20.0, 81.0, 10.0)
zw, mg, ec = [], [], []
for spl in levels:
x = np.sqrt(2) * 2e-5 * 10 ** (spl / 20) * np.sin(2 * np.pi * 1000 * t)
zw.append(psychoacoustics.loudness_zwicker(x, fs, stationary=True).loudness)
mg.append(
psychoacoustics.loudness_moore_glasberg_from_spectrum([(1000.0, float(spl))]).loudness
)
ec.append(psychoacoustics.loudness_ecma(x, fs).loudness)
fig, ax = plt.subplots()
ax.plot(levels, zw, "o-", label="Zwicker (ISO 532-1)")
ax.plot(levels, mg, "s--", label="Moore-Glasberg (ISO 532-2)")
ax.plot(levels, ec, "^-.", label="Sottek (ECMA-418-2)")
ax.plot(40.0, 1.0, "o", color="k", markerfacecolor="none", markersize=10) # the shared anchor
ax.set(xlabel="Sound pressure level [dB SPL]", ylabel="Total loudness N [sone]")
ax.legend()
plt.show()
```
### Moore-Glasberg loudness (ISO 532-2)
Where Zwicker uses fixed critical bands on the Bark scale, Moore-Glasberg builds
an **excitation pattern** with level-dependent rounded-exponential (roex)
auditory filters on the ERB-number ("Cam") scale, then applies a compressive
excitation → specific-loudness transform with C = 0.0617 sone/Cam
(ISO 532-2:2017, Formula 7) and a binaural-inhibition stage. It reproduces the
tone and broadband cases of Annex B to a percent or two and, unlike ISO 532-1,
models binaural summation explicitly.
```python
import numpy as np
from phonometry import psychoacoustics
# The definitional anchor: one 1 kHz sinusoidal component at 40 dB SPL,
# free field, binaural -> 1 sone / 40 phon by construction of the sone.
res = psychoacoustics.loudness_moore_glasberg_from_spectrum([(1000.0, 40.0)], field="free")
print(f"N = {res.loudness:.3f} sone ({res.loudness_level:.1f} phon)") # 1.000 sone (40.0 phon)
# From a calibrated recording: the narrowband (FFT) line spectrum is formed
# (power-preserving normalization) and fed to the exact sinusoidal-component
# method (ISO 532-2 clauses 5.2/5.4).
fs = 48000
x = np.sqrt(2) * 2e-5 * 10 ** (40 / 20) * np.sin(2 * np.pi * 1000 * np.arange(fs) / fs)
res = psychoacoustics.loudness_moore_glasberg(x, fs, field="free", presentation="binaural")
res.plot() # specific loudness N'(i) over the ERB-number (Cam) scale
```
*The ISO 532-2 pattern of the definitional 1 sone anchor. The peak is not a
spectral line but the excitation the roex filters produce around the tone, so
its width is the auditory filter, not the analysis resolution.*
Show the code for this figure
```python
import matplotlib.pyplot as plt
import numpy as np
from phonometry import psychoacoustics
# From a calibrated recording: the narrowband (FFT) line spectrum is formed
# (power-preserving normalization) and fed to the exact sinusoidal-component
# method (ISO 532-2 clauses 5.2/5.4).
fs = 48000
x = np.sqrt(2) * 2e-5 * 10 ** (40 / 20) * np.sin(2 * np.pi * 1000 * np.arange(fs) / fs)
res = psychoacoustics.loudness_moore_glasberg(x, fs, field="free", presentation="binaural")
# One line — the specific-loudness pattern N'(i) straight from the result:
res.plot()
plt.show()
# Or draw it by hand from the ERB-number grid the result already carries:
fig, ax = plt.subplots()
ax.fill_between(res.erb_number, res.specific, alpha=0.3)
ax.plot(res.erb_number, res.specific)
ax.set_xlabel("ERB number [Cam]")
ax.set_ylabel("Specific loudness N' [sone/Cam]")
plt.show()
```
#### `loudness_moore_glasberg()` parameters
| Parameter | Type | Units | Range / default | Notes |
| :--- | :--- | :--- | :--- | :--- |
| `x` | 1D array | Pa | non-empty | Calibrated pressure signal (signal wrapper) |
| `components` | list of `(f, L)` | Hz, dB SPL | — | `_from_spectrum`: discrete sinusoidal components |
| `band_levels` | 29-vector | dB SPL | 25 Hz .. 16 kHz | `_from_third_octave` input (IEC 61260-1 bands) |
| `fs` | int | Hz | > 0 | Signal wrapper only |
| `field` | str | — | `'free'` (default) / `'diffuse'` / `'eardrum'` | Outer-ear transfer |
| `presentation` | str | — | `'binaural'` (default) / `'diotic'` / `'monaural'` | Binaural summation |
Returns a `MooreGlasbergLoudness`: `loudness` (N, sone), `loudness_level`
(phon), `specific` (N′(i), 372 bins of 0.1 Cam), `erb_number`,
`centre_frequencies`, `field`, `presentation`.
### Time-varying loudness (ISO 532-3)
ISO 532-3 wraps the same excitation / specific-loudness model in a running
multi-resolution spectral analysis (six parallel FFTs, updated every 1 ms) and
two cascaded temporal integrators: the fast **short-term loudness** S′(t) and
the slower **long-term loudness** S″(t). The peak long-term loudness N_max
predicts the loudness of sounds up to about 5 s.
```python
import numpy as np
from phonometry import psychoacoustics
fs = 32000
t = np.arange(int(1.3 * fs)) / fs
x = np.sqrt(2) * 2e-5 * 10 ** (40 / 20) * np.sin(2 * np.pi * 1000 * t)
res = psychoacoustics.loudness_moore_glasberg_time(x, fs, field="free")
print(f"N_max = {res.n_max:.3f} sone ({res.loudness_level_max:.0f} phon)") # 1.000 sone (40 phon)
print(f"long-term loudness exceeded 5% of the time: {res.percentiles[5.0]:.3f} sone") # 0.999 sone
res.plot() # short-term S'(t) and long-term S''(t) loudness vs time
```
Show the code for this figure
```python
import matplotlib.pyplot as plt
import numpy as np
from phonometry import psychoacoustics
fs = 32000
t = np.arange(int(1.3 * fs)) / fs
x = np.sqrt(2) * 2e-5 * 10 ** (40 / 20) * np.sin(2 * np.pi * 1000 * t)
res = psychoacoustics.loudness_moore_glasberg_time(x, fs, field="free")
# The result carries both traces on a 1 ms time axis:
res.plot()
plt.show()
# Or plot them directly to see the fast STL vs the slow LTL:
fig, ax = plt.subplots()
ax.plot(res.time, res.short_term_loudness, label="Short-term S'(t)")
ax.plot(res.time, res.long_term_loudness, label="Long-term S''(t)")
ax.set_xlabel("Time [s]")
ax.set_ylabel("Loudness [sone]")
ax.legend()
plt.show()
```
#### `loudness_moore_glasberg_time()` parameters
| Parameter | Type | Units | Range / default | Notes |
| :--- | :--- | :--- | :--- | :--- |
| `signal` | 1D or `(n, 2)` array | Pa | non-empty | Mono = diotic; two columns = left/right ears |
| `fs` | int | Hz | > 0 | |
| `field` | str | — | `'free'` (default) / `'diffuse'` / `'eardrum'` | Outer-ear transfer |
| `presentation` | str | — | `'binaural'` (default) / `'diotic'` / `'monaural'` | Binaural summation |
| `percentiles` | sequence | percent | default `(1, 5, 10, 50, 90, 95)` | Exceeded long-term loudness levels |
Returns a `MooreGlasbergTimeVaryingLoudness`: `time` (1 ms grid),
`short_term_loudness` / `long_term_loudness` (sone), their `_level` in phon,
`n_max`, `loudness_level_max`, a `percentiles` dict, `field`, `presentation`.
### Sottek Hearing Model loudness (ECMA-418-2)
ECMA-418-2:2025 specifies a single auditory front-end (outer/middle-ear
filtering, a 53-band gammatone-like filter bank on the Bark_HMS scale
with z = 0.5 .. 26.5, half-wave rectification, block RMS and a compressive
nonlinearity, Formula 23) that is **shared** by its loudness, tonality and
roughness metrics. The loudness N is reported in **sone_HMS**, and the same
1 kHz/40 dB anchor calibrates the front-end (our clean-room value 0.984,
with the full Clause 6.2.3 band averaging; the residual's origin is
documented in the module docstring).
```python
import numpy as np
from phonometry import psychoacoustics
fs = 48000
t = np.arange(int(1.2 * fs)) / fs
x = np.sqrt(2) * 2e-5 * 10 ** (40 / 20) * np.sin(2 * np.pi * 1000 * t)
res = psychoacoustics.loudness_ecma(x, fs, field="free")
print(f"N = {res.loudness:.3f} sone_HMS") # 0.984 sone_HMS
print(res.specific_loudness.shape) # (53,) average specific loudness N'(z)
res.plot() # average specific loudness N'(z) + time-dependent N(l) at 187.5 Hz
```
Show the code for this figure
```python
import matplotlib.pyplot as plt
import numpy as np
from phonometry import psychoacoustics
fs = 48000
t = np.arange(int(1.2 * fs)) / fs
x = np.sqrt(2) * 2e-5 * 10 ** (40 / 20) * np.sin(2 * np.pi * 1000 * t)
res = psychoacoustics.loudness_ecma(x, fs, field="free")
# The result carries the average specific loudness over the 53 Bark_HMS bands:
res.plot()
plt.show()
# Or draw N'(z) by hand against the critical-band-rate scale:
fig, ax = plt.subplots()
ax.fill_between(res.bark, res.specific_loudness, alpha=0.3)
ax.plot(res.bark, res.specific_loudness)
ax.set_xlabel("Critical-band rate z [Bark_HMS]")
ax.set_ylabel("Specific loudness N' [sone_HMS/Bark_HMS]")
plt.show()
```
#### `loudness_ecma()` parameters
| Parameter | Type | Units | Range / default | Notes |
| :--- | :--- | :--- | :--- | :--- |
| `signal_in` | 1D array | Pa | non-empty | Calibrated pressure signal |
| `fs` | float | Hz | > 0 | Resampled to 48 kHz internally if needed (Clause 5.1.1) |
| `field` | str | — | `'free'` (default) / `'diffuse'` | Outer/middle-ear filter (Clause 5.1.3) |
Returns an `EcmaLoudness`: `loudness` (N, sone_HMS), `specific_loudness`
(N′(z), 53 bands), `bark`, `centre_frequencies`, `time`, `loudness_vs_time`
(N(l) at 187.5 Hz), `field`.
## Quick answers
### What is the difference between loudness in sones and loudness level in phons?
Loudness N in sones (ISO 532-1) is a ratio scale of perceived loudness: 4 sones is twice as loud as 2 sones, and by definition a 1 kHz tone at 40 dB SPL is 1 sone. Loudness level in phons (ISO 226) is the SPL of an equally loud 1 kHz pure tone, and every +10 phon doubles the sone value.
### Which loudness model should I choose: Zwicker, Moore-Glasberg or Sottek?
The Zwicker method (ISO 532-1:2017) is the reference: stationary and time-varying, one-third-octave input, fast and widely cited. Moore-Glasberg (ISO 532-2:2017) is stationary, builds roex excitation patterns and models binaural summation explicitly; ISO 532-3:2023 adds time-varying short- and long-term loudness with the peak N_max. The Sottek model (ECMA-418-2:2025) reports sone_HMS and shares its auditory front-end with the ECMA tonality and roughness metrics.
### Over what range are the ISO 226:2023 equal-loudness contours valid?
ISO 226:2023 clause 4.1 defines the normal equal-loudness-level contours from 20 to 90 phon, evaluated at the 29 preferred third-octave frequencies of Table 1; above 80 phon the formula is valid only up to 4 kHz, so the 90 phon contour stops there and no higher contours are defined. The contours describe pure tones, not arbitrary signals.
## References
- Fastl, H., & Zwicker, E. (2007). *Psychoacoustics: Facts and models*
(3rd ed.). Springer.
[doi:10.1007/978-3-540-68888-4](https://doi.org/10.1007/978-3-540-68888-4).
The critical-band and masking psychoacoustics behind the Zwicker model and
the loudness sensation the newer models refine.
- Fletcher, H., & Munson, W. A. (1933). Loudness, its definition, measurement
and calculation. *The Journal of the Acoustical Society of America*, 5(2),
82-108. [doi:10.1121/1.1915637](https://doi.org/10.1121/1.1915637).
The original equal-loudness measurements behind the loudness-level concept
of the pure-tone section.
- International Organization for Standardization. (2023). *Acoustics —
Normal equal-loudness-level contours* (ISO 226:2023).
[iso.org catalogue](https://www.iso.org/standard/83117.html).
The contour model and Table 1 parameters behind the pure-tone loudness
levels.
## Standards
ISO 532-1:2017, *Acoustics — Methods for calculating
loudness — Part 1: Zwicker method* — stationary and time-varying loudness in
sones from the normative Annex A.4 reference program, with the N5/N10
percentile loudness, validated against the Annex B set. ISO 532-2:2017,
*... Part 2: Moore-Glasberg method*: stationary loudness from roex excitation
patterns on the ERB-number scale, with explicit binaural summation.
ISO 532-3:2023, *... Part 3: Moore-Glasberg-Schlittenlacher method*:
time-varying short-term and long-term loudness and the peak N_max.
ISO 226:2023, *Acoustics — Normal equal-loudness-level contours* — the
contours (Formula 1), the loudness level of pure tones (Formula 2) and the
hearing threshold. ECMA-418-2:2025, *Psychoacoustic metrics for ITT
equipment — Part 2 (methods for describing human perception based on the
Sottek Hearing Model)*: the Sottek Hearing Model loudness (sone_HMS).
## See also
- [Sound Quality Metrics](https://jmrplens.github.io/phonometry/guides/sound-quality/): sharpness,
tonality and roughness, the other half of the sound-quality story.
- [Psychoacoustic annoyance and fluctuation strength](https://jmrplens.github.io/phonometry/reference/api/psychoacoustics/psychoacoustic-annoyance/):
the Zwicker and Fastl model that consumes the percentile loudness N5.
- [Theory](https://jmrplens.github.io/phonometry/reference/theory/perception/): the equations behind the loudness models.
- API reference: [`psychoacoustics.loudness_zwicker`](https://jmrplens.github.io/phonometry/reference/api/psychoacoustics/loudness-zwicker/), [`psychoacoustics.loudness_moore_glasberg`](https://jmrplens.github.io/phonometry/reference/api/psychoacoustics/loudness-moore-glasberg/) and [`psychoacoustics.loudness_contours`](https://jmrplens.github.io/phonometry/reference/api/psychoacoustics/loudness-contours/).
