Source: https://jmrplens.github.io/phonometry/guides/fdtd-simulation/ # 2D FDTD wave simulation Most of phonometry predicts a **number**: a level, a reverberation time, a transmission loss. The `simulation` domain computes the **wave field itself**: `fdtd_simulation` integrates the linear acoustic equations on a 2D grid with the **finite-difference time-domain (FDTD)** method, so reflection, diffraction, interference, refraction through inhomogeneous media and modal behaviour all emerge from first principles instead of being modelled term by term. The implementation follows the reference formulation for outdoor sound of Attenborough & Van Renterghem, *Predicting Outdoor Sound* (2nd ed., CRC Press 2021), chapter 4: the staggered-in-place, staggered-in-time pressure-velocity scheme (Eqs. 4.11-4.12), the Courant stability condition (Eqs. 4.13-4.14), rigid boundaries as zero normal face velocity (Eq. 4.32) and the frequency-independent real-impedance boundary (Eqs. 4.33-4.35). The solver is **deterministic by design**: float64 arithmetic, no random numbers and single-threaded numpy stepping, so the same inputs produce bit-identical outputs on the same platform. It is the engine behind the FDTD animations of this documentation, promoted to a public API with sources, pressure probes, rasterised obstacles, per-side boundary conditions and a frozen result object. ## 1. The scheme: a wave equation on a grid In a non-moving medium the linearised equations of fluid dynamics reduce to a first-order system in the acoustic pressure ``p`` and particle velocity ``v`` (Attenborough & Van Renterghem Eqs. 4.3-4.4): $$ \frac{\partial p}{\partial t} + \rho c^2\,\nabla\!\cdot\!\mathbf{v} = 0, \qquad \frac{\partial \mathbf{v}}{\partial t} + \frac{1}{\rho}\,\nabla p = 0 . $$ FDTD discretises both on a **staggered grid** (the acoustic analogue of the Yee cell): pressure lives at cell centres and each velocity component on the cell faces, half a cell away, and the two fields **leapfrog** in time, half a time step apart (Eqs. 4.11-4.12). Evaluating each spatial gradient exactly where the other field needs it gives a fourfold accuracy gain over a collocated grid (Eq. 4.9 vs 4.10) and allows in-place updates. Because only interior faces are stored, the domain edge is a perfectly **rigid wall** (zero normal velocity, Eq. 4.32) unless another boundary is requested. The explicit scheme is stable only while a wavefront crosses at most one cell per time step. With square cells the **Courant number** (Eq. 4.13) is $$ \mathrm{CN} = c\,\Delta t\sqrt{\frac{1}{\Delta x^2} + \frac{1}{\Delta y^2}} = \frac{c\,\Delta t\,\sqrt{2}}{\Delta x} \le 1, $$ and `fdtd_simulation` derives the time step from the `cfl` parameter (the Courant number, default 0.6) and the largest sound speed in the map; values outside ``(0, 1)`` are rejected because the scheme is unconditionally meaningless beyond the bound (Eq. 4.14). ```python from phonometry import simulation # A 3.0 x 2.0 m air domain: 300 x 200 cells of 1 cm. res = simulation.fdtd_simulation( 343.0, 0.01, 2.0e-3, shape=(200, 300), sources=[simulation.GaussianPulse(ix=60, iy=100, width=3.0e-4)], probes=[(200, 100)], ) print(res.size) # (3.0, 2.0) metres print(round(res.dt * 1e6, 2)) # 12.37 microseconds (CN = 0.6) res.plot() # probe pressure histories (figure in §3) ``` The grid is index-based: cell ``(ix, iy)`` has its centre at ``((ix + 0.5) * dx, (iy + 0.5) * dx)`` metres, with rows plotted downward (the ``imshow`` convention), so a position in metres maps to ``ix = round(x / dx - 0.5)``. ## 2. Sources, probes, obstacles and boundaries Three source types inject a **soft source** (an additive pressure contribution that does not scatter passing waves) at a grid cell: `GaussianPulse` (a broadband pulse of temporal half-width `width`), `CWSource` (a sine tone faded in with a raised-cosine ramp so its onset does not splash a broadband transient) and `SignalSource` (an arbitrary sampled waveform, linearly interpolated onto the simulation time steps). Probes record the pressure at their cell every time step into the result. Geometry is **rasterised**: `obstacle_mask` marks rigid cells, and every face touching a masked cell is closed (Eq. 4.32 again), so walls, barriers and scatterers of any shape are just boolean arrays. Each domain side can carry its own boundary condition: - ``"rigid"`` (default): a perfect reflector, ``R = +1``. - ``"absorbing"``: a sponge layer of `absorbing_layer_cells` cells whose absorption rate ramps quadratically, emulating an open boundary (the simple precursor of the perfectly matched layers of section 4.2.3). - a **real specific impedance** ``Z`` in Pa·s/m (a scalar or one value per edge cell): the locally reacting boundary of Eqs. 4.33-4.35, updated implicitly, with the normal-incidence reflection coefficient ``R = (Z - ρc)/(Z + ρc)``; ``Z = ρc`` is anechoic. The stepping engine `FDTD2D` is public too: it exposes `step()`, `run()`, the field arrays and the energy, for callers that need frame-by-frame access (the documentation animations use it directly). A plane pulse launched down a duct against an impedance edge reproduces the textbook reflection coefficient: ```python import numpy as np from phonometry import simulation rho, c, dx = 1.2, 343.0, 0.01 sim = simulation.FDTD2D(c, dx, rho=rho, shape=(3, 1200), edge_impedance={"right": 3.0 * rho * c}) x = (np.arange(1200) + 0.5) * dx sim.p[:] = np.exp(-(((x - 6.0) / 0.15) ** 2))[None, :] # plane pulse trace = [] for _ in range(int(round(0.032 / sim.dt))): sim.step() trace.append(sim.p[1, 900]) trace = np.asarray(trace) t = (np.arange(trace.size) + 1) * sim.dt t_return = 6.0 / c + 3.0 / c # via the wall, back to x = 9 m incident = trace[t < t_return - 0.001].max() echo = trace[t > t_return] print(round(float(echo[np.abs(echo).argmax()] / incident), 2)) # 0.5 # (Z - rho c)/(Z + rho c) = (3 - 1)/(3 + 1) = +0.5 ``` ## 3. When to use it, and the 2D limits FDTD earns its cost when the **geometry drives the physics**: diffraction around a barrier or through an opening, interference of direct and reflected paths, scattering from obstacles, modal behaviour of odd-shaped enclosures, refraction through a sound-speed gradient. One run captures **all frequencies at once** (a pulse excites the whole band; one FFT of a probe yields the spectrum), where a frequency-domain method needs one solve per frequency.

Show the code for this figure

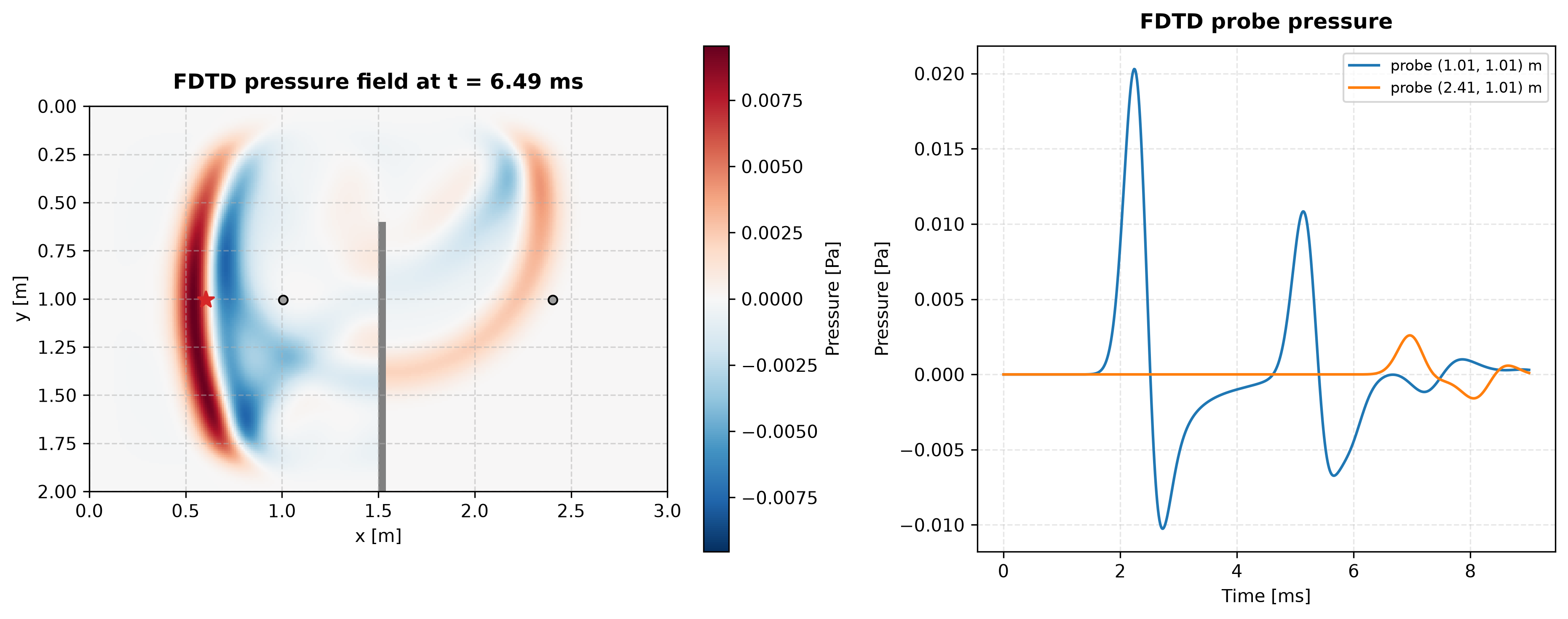

```python import numpy as np import matplotlib.pyplot as plt from phonometry import simulation # A 3.0 x 2.0 m free field (absorbing edges) with a thin rigid barrier: # probe A sees the direct pulse plus the barrier reflection, probe B sits # in the shadow and only receives the wave diffracted around the edge. mask = np.zeros((200, 300), dtype=bool) mask[60:, 150:154] = True res = simulation.fdtd_simulation( 343.0, 0.01, 9.0e-3, shape=(200, 300), sources=[simulation.GaussianPulse(ix=60, iy=100, width=3.0e-4)], probes=[(100, 100), (240, 100)], obstacle_mask=mask, boundaries="absorbing", absorbing_layer_cells=30, snapshot_every=75, ) fig, (ax_f, ax_p) = plt.subplots( 1, 2, figsize=(12.5, 5.0), gridspec_kw={"width_ratios": [1.25, 1.0]}) res.plot(kind="snapshot", frame=7, ax=ax_f) res.plot(ax=ax_p) plt.tight_layout() plt.show() ```

Conversely, when a validated closed form exists (statistical reverberation, ISO 9613-2 outdoor attenuation, image sources in a rectangular room) the closed form is thousands of times cheaper: this solver is the cross-check and the demonstrator, not the replacement. The oracle works both ways; a rigid-box run reproduces the analytic room modes: ```python import numpy as np from phonometry import simulation lx, ly, dx = 1.0, 0.7, 0.02 nx, ny = round(lx / dx), round(ly / dx) res = simulation.fdtd_simulation( 343.0, dx, 0.35, shape=(ny, nx), sources=[simulation.GaussianPulse(ix=7, iy=5, width=2.0e-4)], probes=[(nx - 4, ny - 3)], ) p = res.pressures[0] spec = np.abs(np.fft.rfft(p * np.hanning(p.size), n=8 * p.size)) freqs = np.fft.rfftfreq(8 * p.size, res.dt) sel = (freqs > 250) & (freqs < 350) print(round(0.5 * 343.0 * float(np.hypot(1 / lx, 1 / ly)), 1)) # 299.1 exact (1,1) mode print(round(float(freqs[sel][np.argmax(spec[sel])]), 1)) # 298.9 measured ``` *The probe spectrum of the rigid-box run peaks exactly on the analytic mode frequencies $f = (c/2)\sqrt{(n_x/L_x)^2 + (n_y/L_y)^2}$ (Kuttruff 6e, Ch. 3). The barely visible leftward offset of the highest peaks is the numerical dispersion of the accuracy section below: short wavelengths propagate slightly slow on the grid, so the modelled resonances under-read by a fraction of a percent.*

Show the code for this figure

```python import numpy as np import matplotlib.pyplot as plt from phonometry import simulation lx, ly, dx, c = 1.0, 0.7, 0.02, 343.0 nx, ny = round(lx / dx), round(ly / dx) res = simulation.fdtd_simulation( c, dx, 0.35, shape=(ny, nx), sources=[simulation.GaussianPulse(ix=7, iy=5, width=2.0e-4)], probes=[(nx - 4, ny - 3)], ) # One line: the raw probe pressure history the spectrum is computed from. res.plot() plt.show() # The mode check: probe spectrum against the analytic rigid-room modes. p = res.pressures[0] spec = np.abs(np.fft.rfft(p * np.hanning(p.size), n=8 * p.size)) freqs = np.fft.rfftfreq(8 * p.size, res.dt) sel = (freqs >= 100) & (freqs <= 450) fig, ax = plt.subplots() ax.plot(freqs[sel], 20 * np.log10(spec[sel] / spec[sel].max())) for mx, my in [(1, 0), (0, 1), (1, 1), (2, 0), (2, 1)]: ax.axvline(0.5 * c * np.hypot(mx / lx, my / ly), ls=":", color="tab:red") ax.set(xlabel="Frequency [Hz]", ylabel="Probe spectrum [dB re max]", ylim=(-60, 6)) plt.show() ```

The domain is **two-dimensional**, and that changes the physics, not just the cost. A 2D point source is physically an infinite **line source**: its amplitude spreads cylindrically as ``1/sqrt(r)`` (3.0 dB per doubling of distance) instead of the spherical ``1/r`` (6.0 dB) of a 3D point source, and the 2D impulse response trails a wake behind the wavefront instead of passing cleanly. Interference and diffraction *patterns* are faithful; absolute levels and decay rates are not those of a 3D room. Treat 2D runs as cross-sections and demonstrations, and validate any 3D-quantitative claim against a closed form or a 3D solver. ## 4. Numerical dispersion and accuracy The discrete grid propagates each frequency at a slightly wrong speed: short wavelengths lag, so a sharp pulse develops a ripple tail and resonances shift slightly. This **numerical dispersion** is the discrete counterpart of Eq. 4.15; on the axes of a square grid the scheme's dispersion relation is $$ \sin\!\left(\frac{\omega\,\Delta t}{2}\right) = \frac{c\,\Delta t}{\Delta x}\, \sin\!\left(\frac{k\,\Delta x}{2}\right), $$ with a leading-order relative frequency error of magnitude ``(1 - S^2) (k dx)^2 / 24`` along the grid axes (the modelled frequency under-reads, so the signed error is negative), where ``S = c dt / dx``; the error is largest exactly on-axis and vanishes along the cell diagonal at the Courant limit ``CN = 1``. The practical rule is to resolve **at least 10 cells per shortest wavelength**, ``dx <= c_min / (10 f_max)`` with the smallest sound speed of the domain: at exactly 10 cells the small-Courant bound ``(k dx)^2 / 24`` evaluates to about 1.6 %, reduced by the ``1 - S^2`` factor to about 1.4 % at the default ``cfl = 0.6`` (in a heterogeneous domain the time step follows the fastest cells, so slower regions run at a lower local Courant number and sit nearer the 1.6 % bound), and every finer-resolved or off-axis component is more accurate. With ``dx = 1`` cm the 10-cell point in air sits at roughly 3.4 kHz, and halving ``dx`` quarters the error (the scheme is second order, and the validation suite measures that observed order under grid refinement). The tests pin the solver to analytic oracles: box and duct eigenfrequencies, free-field arrival times and cylindrical decay, the rigid-wall image echo, the impedance reflection coefficient above and the dispersion relation itself. The frozen `FDTDResult` carries the time axis, the per-probe pressure histories, the probe positions in metres, the grid metadata, the sources, the optional field snapshots with their times and the obstacle mask; its `.plot()` draws the probe histories, and `.plot(kind="snapshot")` renders one recorded field with the geometry overlaid. ## Quick answers ### How do I choose the FDTD grid spacing? Resolve at least 10 cells per shortest wavelength, ``dx <= c_min / (10 f_max)``, using the smallest sound speed in the domain. At exactly 10 cells the on-axis dispersion error bound is about 1.6 %, reduced to about 1.4 % at the default ``cfl = 0.6``, and halving ``dx`` quarters the error (the scheme is second order). With ``dx = 1`` cm the 10-cell point in air sits at roughly 3.4 kHz. ### What Courant number keeps an FDTD simulation stable? The explicit scheme is stable only while a wavefront crosses at most one cell per time step. With square cells the Courant number is $\mathrm{CN} = c\,\Delta t\,\sqrt{2}/\Delta x \le 1$ (Attenborough & Van Renterghem Eq. 4.13). `fdtd_simulation` derives the time step from the `cfl` parameter (the Courant number, default 0.6) and the largest sound speed in the map, rejecting values outside $(0, 1)$. ### Can I trust the absolute levels from a 2D FDTD run? No. A 2D point source is physically an infinite line source: its amplitude spreads cylindrically as ``1/sqrt(r)``, 3.0 dB per doubling of distance, instead of the spherical ``1/r`` (6.0 dB per doubling) of a 3D point source. Interference and diffraction patterns are faithful, but absolute levels and decay rates are not those of a 3D room; validate any 3D-quantitative claim against a closed form or a 3D solver. ## References - Attenborough, K., & Van Renterghem, T. (2021). *Predicting outdoor sound* (2nd ed.). CRC Press. [doi:10.1201/9780429470806](https://doi.org/10.1201/9780429470806). Chapter 4: the pressure-velocity FDTD reference model implemented here, from the governing equations (4.3-4.4) and the staggered leapfrog update (4.11-4.12) through the Courant condition (4.13-4.14), the phase-error analysis (4.15) and the rigid and finite-impedance boundary conditions (4.32-4.35). - Kuttruff, H. (2016). *Room acoustics* (6th ed.). CRC Press. [doi:10.1201/9781315372150](https://doi.org/10.1201/9781315372150). Section 3.5 places time-domain wave-based methods among the numerical approaches to the wave equation in enclosures, and chapter 3 gives the rigid-room normal modes used as the analytic oracle. ## Standards and sources The module implements a textbook numerical method rather than a measurement standard: the discretisation, stability bound and boundary conditions follow Attenborough & Van Renterghem (2021) chapter 4 as the citable reference formulation. Validation is anchored to closed forms (rigid-box eigenfrequencies, cylindrical spreading, image sources, the normal-incidence reflection coefficient and the scheme's dispersion relation); two of those anchors run in the [conformance report](https://jmrplens.github.io/phonometry/reference/conformance/).
