Source: https://jmrplens.github.io/phonometry/guides/correlation-delay/ # Correlation, time delay and envelope (Bendat & Piersol / Knapp & Carter) Where the [calibrated spectral estimators](https://jmrplens.github.io/phonometry/guides/spectral-analysis/) describe a signal in frequency, this page covers their time-domain counterparts in `phonometry.metrology`: **auto- and cross-correlation** estimates with the three standard normalizations and their Bendat & Piersol random errors; **time-delay estimation** (TDE) by the direct correlator, the cross-spectrum phase slope and the **generalized cross-correlation** (GCC) of Knapp & Carter with the Roth, SCOT, PHAT and maximum-likelihood weightings; **sub-sample peak location** for impulse-response delays and alignment; and the **Hilbert envelope** with instantaneous phase and frequency. The GCC estimators run on the same Welch core as the spectral densities, so both views of a signal pair are mutually consistent bin by bin. ## 1. Correlation estimates `correlation` computes the auto- or cross-correlation via zero-padded FFT so the circular product never wraps (Bendat & Piersol Section 11.4.2), with the sign convention of the book's time-delay model: for `y(t) = α·x(t-τ0) + n(t)` the estimate peaks at `τ = +τ0` (Eq. 5.21). Three normalizations are available: - `'biased'`: the lag sums divided by `N`; tapers toward the record ends and stays bounded by `[Rxx(0)·Ryy(0)]^1/2`; - `'unbiased'`: divided by `N-|r|` (Eq. 11.96), an unbiased estimate of `Rxy(τ)` whose variance grows toward the ends; - `'coefficient'`: the correlation coefficient function `ρxy(τ) = Cxy(τ)/(σx·σy)` in [-1, 1] over the mean-removed records (Eq. 5.16). ```python import numpy as np from phonometry import correlation res = correlation(x, y, fs, normalization="coefficient", max_lag=0.05) peak = np.argmax(res.values) print(res.lags[peak], res.values[peak]) # delay and its coefficient res.plot() ``` *The two-sensor delay model `y(t) = 0.8·x(t−τ0) + n(t)` under the three normalizations: the coefficient function is bounded and peaks at +τ0 (top); over the full lag range the biased estimate tapers toward the ends while the unbiased one pays for its unbiasedness with variance that grows there (bottom).*

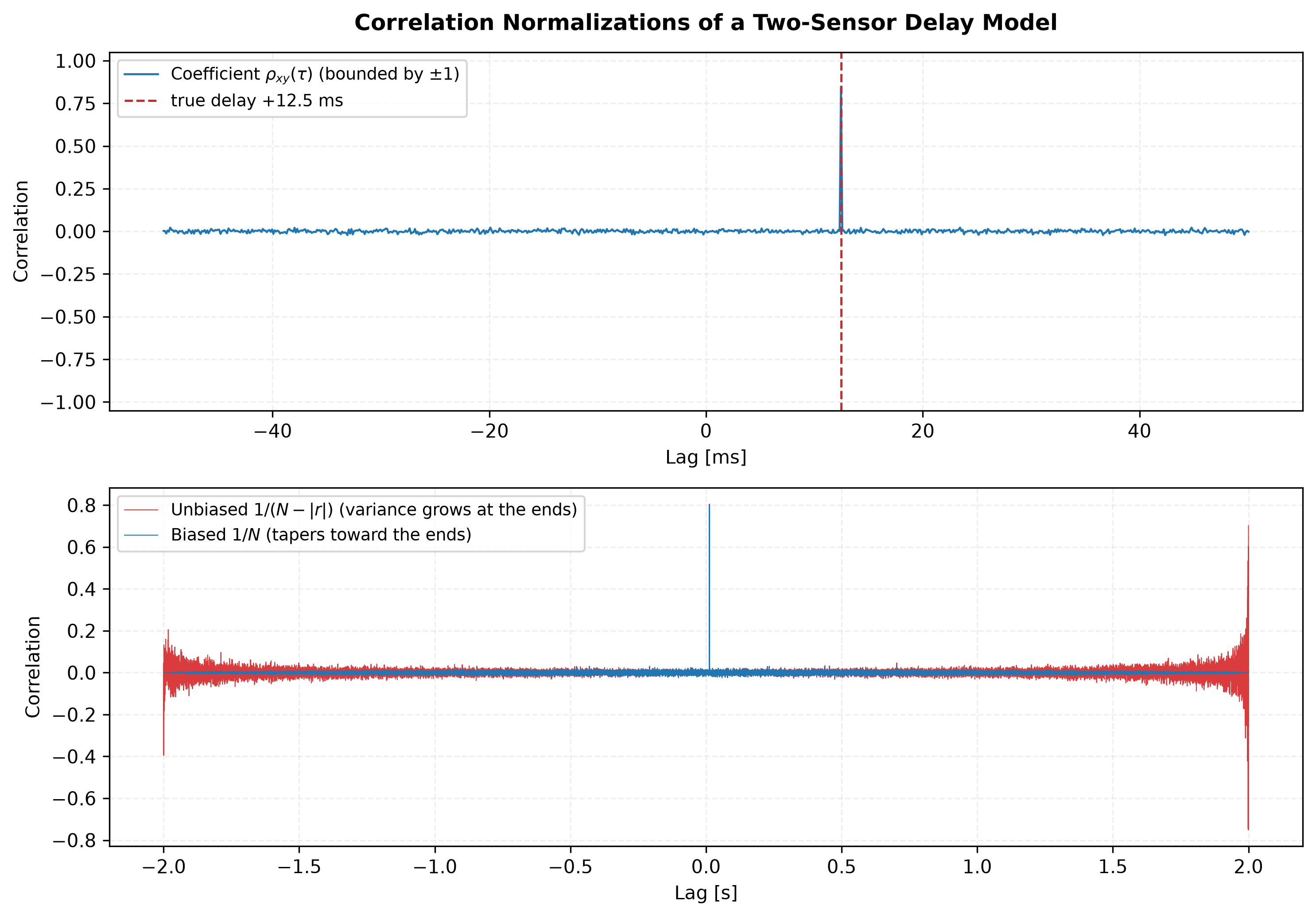

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import correlation, noise_signal fs = 8192.0 delay = 102 # 12.45 ms x = noise_signal(fs, 2.0, seed=4) interference = noise_signal(fs, 2.0, rms=0.5, seed=5) y = 0.8 * np.concatenate([np.zeros(delay), x[:-delay]]) + interference res = correlation(x, y, fs, normalization="coefficient", max_lag=0.05) # One line — the correlation estimate against the lag in seconds: res.plot() plt.show() # The three normalizations by hand, from the same records: biased = correlation(x, y, fs, normalization="biased") unbiased = correlation(x, y, fs, normalization="unbiased") fig, (ax_c, ax_n) = plt.subplots(2, 1) ax_c.plot(1e3 * res.lags, res.values, label="coefficient") ax_c.axvline(1e3 * delay / fs, color="r", linestyle="--", label="true delay") ax_c.set(xlabel="Lag [ms]", ylabel="Correlation") ax_n.plot(unbiased.lags, unbiased.values, "r", lw=0.5, label="unbiased") ax_n.plot(biased.lags, biased.values, lw=0.5, label="biased") ax_n.set(xlabel="Lag [s]", ylabel="Correlation") for ax in (ax_c, ax_n): ax.legend() plt.show() ```

The result always carries the coefficient function alongside the requested normalization, because the coefficient is what the error formulas need. For bandwidth-limited Gaussian data of bandwidth `B` observed for `T` seconds (Eqs. 8.109/8.112, valid for `T ≥ 10·|τ|` and `BT ≥ 5`): $$ \varepsilon\!\left[\hat{R}_{xy}(\tau)\right] = \frac{\left[1 + \rho^{-2}_{xy}(\tau)\right]^{1/2}}{\sqrt{2BT}}, \qquad \varepsilon\!\left[\hat{R}_{xx}(0)\right] = \frac{1}{\sqrt{BT}} . $$ `res.random_error(signal_bandwidth)` evaluates it per lag with the measured coefficient, and the standalone `correlation_random_error` takes an explicit coefficient; with `ρ = S/√((S+M)(S+N)) = 1/11`, `B = 100` Hz and `T = 5` s it reproduces the `ε ≈ 0.35` of the book's Example 8.5, one of the pinned conformance anchors. Two closed forms anchor the estimator itself in the tests: the autocorrelation of a sine, `(A²/2)·cos(2πf0τ)`, and the `sin(2πBτ)/(2πBτ)` autocorrelation of bandwidth-limited white noise (Eq. 8.120). ## 2. Time-delay estimation `time_delay` estimates the delay of `y` relative to `x` in the two-sensor model `y(t) = α·x(t-τ0) + n(t)` (B&P Section 5.1.4) by three routes: - **`'direct'`**: the peak of the full-record correlation coefficient function; - **`'phase'`**: the `|Gxy|`-weighted least-squares slope of the cross-spectrum phase (Eq. 5.101b): a pure delay has an exactly linear phase, so this estimator resolves fractional delays to better than 1e-3 samples without any peak interpolation, as long as the unwrapped phase is unambiguous (clean, moderate delays); - **`'gcc'`**: the generalized cross-correlation of Knapp & Carter (1976): the Welch-averaged cross-spectrum is weighted by `ψ(f)` before the inverse transform, sharpening the peak that the signal's own autocorrelation would otherwise smear (their Eq. 9). The weightings of Knapp & Carter's Table I, with the conditions the paper attaches to each: | `weighting` | `ψ(f)` | Behaviour and conditions | |---|---|---| | `'none'` | 1 | The plain correlator: the delta at the delay is convolved with the signal autocorrelation, giving a broad peak on colored signals. | | `'roth'` | `1/Gxx` | Suppresses the bands where the *first* sensor is noisy; still smears unless that noise is spectrally similar to the signal. | | `'scot'` | `1/√(Gxx·Gyy)` | Prewhitens both channels symmetrically; equals Roth when the sensors match. | | `'phat'` | `1/|Gxy|` | Ideally a delta at the delay for uncorrelated noises (their Eq. 23), but the weight ignores the signal-to-noise ratio, so bands without signal contribute unit-magnitude random phase. It needs signal power across the analysis band. | | `'ml'` | `γ²/(|Gxy|·(1-γ²))` | The Hannan-Thomson maximum-likelihood processor: a PHAT weighted down by the phase variance each band actually carries. Attains the Cramér-Rao bound; the safe default when the signal does not fill the band. |

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from scipy import signal as sp_signal from phonometry import noise_signal, time_delay fs = 8192.0 delay = 20 # samples b, a = sp_signal.butter(2, 800.0 / (fs / 2.0)) # colored common signal s = sp_signal.lfilter(b, a, noise_signal(fs, 4.0, color="white", seed=10)) x = s + noise_signal(fs, 4.0, color="white", rms=0.02, seed=11) y = np.roll(s, delay) + noise_signal(fs, 4.0, color="white", rms=0.02, seed=12) direct = time_delay(x, y, fs, method="direct", max_delay=0.01) phat = time_delay(x, y, fs, method="gcc", weighting="phat", nperseg=2048, max_delay=0.01) fig, ax = plt.subplots(figsize=(10, 6)) ax.plot(1e3 * direct.lags, direct.correlation / np.max(np.abs(direct.correlation)), label="Direct cross-correlation") ax.plot(1e3 * phat.lags, phat.correlation, label="GCC-PHAT") ax.axvline(1e3 * delay / fs, ls="--", color="k", label="True delay") ax.set_xlabel("Lag [ms]") ax.set_ylabel("Normalized correlation") ax.legend() plt.show() ```

The correlation-peak methods refine the sample peak by three-point parabolic interpolation, optionally after **band-limited local upsampling** (`upsample=16` resamples a window around the peak sixteenfold before the parabola). Sub-sample accuracy presumes the peak is oversampled, i.e. the signals are band-limited below Nyquist; on a 0.4·fs band-limited pair the tests pin the achievable error at ≲0.1 sample for the parabola alone and ≲2e-3 samples with `upsample=16`. For GCC the delay must fit within half a Welch segment; raise `nperseg` for longer delays. With `signal_bandwidth` given, the result also carries the **peak-location uncertainty** of B&P Eq. 8.129 and its ±2σ interval (Eq. 8.130): $$ \sigma(\hat{\tau}_0) \approx \left(\tfrac{3}{4}\right)^{1/4} \frac{\sqrt{\varepsilon[\hat{R}_{xy}(\tau_0)]}}{\pi B} . $$ ```python from phonometry import time_delay res = time_delay(x, y, fs, method="gcc", weighting="ml", nperseg=2048, upsample=16, signal_bandwidth=1000.0) print(res.delay, res.delay_samples) # seconds and fractional samples print(res.delay_std, res.delay_interval) # Eq. 8.129 sigma, +/-2 sigma res.plot() # correlation with the delay marked ``` The formula models the peak of the continuous correlation function, so treat the interval as a conservative order-of-magnitude bound; the seeded Monte Carlo in the test suite observes the actual scatter *below* the prediction. ## 3. Impulse-response delay and alignment The cross-correlation of an impulse response with an ideal unit impulse is the IR itself, so the sub-sample location of its peak magnitude is its arrival time. `impulse_response_delay` applies exactly the same refinement as the TDE peak (local band-limited upsampling, default ×8, plus the parabola), and with a `reference` IR it measures the delay between the pair from their full-record cross-correlation (one-shot transients are not stationary records, so the direct correlator is used rather than the Welch-averaged GCC): ```python from phonometry import align_impulse_responses, impulse_response_delay t_arrival = impulse_response_delay(ir, fs) # seconds from t = 0 dt = impulse_response_delay(ir_b, fs, reference=ir_a) # pair delay res = align_impulse_responses(ir_b, ir_a, fs) # remove the estimated delay res.plot() # reference vs aligned overlay ``` *A measured IR delayed by a fractional 7.37 samples (dashed) is aligned back onto its reference: the band-limited shift removes the estimated 7.36 samples and the aligned trace (dotted) lands on the reference.*

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from scipy import signal as sp_signal from phonometry import align_impulse_responses, fractional_delay fs = 48000.0 t = np.arange(int(0.03 * fs)) / fs rng = np.random.default_rng(6) # Band-limited reference pulse: a 2 kHz Gaussian tone burst at 5 ms. ir_a = sp_signal.gausspulse(t - 0.005, fc=2000.0, bw=0.5) ir_b = fractional_delay(ir_a, 7.37)[: ir_a.size] ir_b += 0.005 * rng.standard_normal(ir_a.size) res = align_impulse_responses(ir_b, ir_a, fs) # One line — reference and aligned IR overlaid: res.plot() plt.show() # By hand, from the fields the result carries: t_ms = 1e3 * t fig, ax = plt.subplots() ax.plot(t_ms, res.reference, lw=1.6, label="Reference IR") ax.plot(t_ms, ir_b, "0.5", lw=1.0, linestyle="--", label="Measured IR") ax.plot(t_ms, res.aligned[: t.size], "r:", label="Aligned IR") ax.set(xlabel="Time [ms]", ylabel="Amplitude", title=f"delay removed: {res.delay_samples:.2f} samples") ax.legend() plt.show() ```

`align_impulse_responses` removes the estimated delay with an exact band-limited fractional shift (a frequency-domain phase ramp over a zero-padded record, so nothing wraps around): the tool for averaging IR ensembles or comparing measurements taken at slightly different distances. The synthetic fractional-delay tests document the achievable accuracy on a smooth band-limited pulse: about 1e-2 samples with the parabola alone, 1e-3 at the default `upsample=8`, below 1e-5 at ×32. ## 4. Hilbert envelope and instantaneous frequency `envelope` builds the analytic signal `z(t) = x(t) + j·x̃(t)` by the one-sided spectrum construction that Bendat & Piersol recommend (Eq. 13.25) and returns the three Chapter 13 quantities on one time axis: $$ A(t) = \left[x^2(t) + \tilde{x}^2(t)\right]^{1/2}, \qquad \theta(t) = \arctan\frac{\tilde{x}(t)}{x(t)}, \qquad f(t) = \frac{1}{2\pi}\frac{d\theta}{dt} . $$ For an amplitude-modulated carrier `u(t)·cos(2πf0t)` the envelope recovers `u(t)` exactly (Eq. 13.27); the conformance suite pins the recovered AM envelope and the Table 13.1 pair `cos → sin` at the 1e-9 level, and the instantaneous frequency of a chirp tracks its sweep. ```python from phonometry import envelope res = envelope(x, fs) print(res.envelope, res.instantaneous_frequency) res.plot() # signal + envelope, instantaneous frequency slow = envelope(x, fs, decimation_factor=32) # anti-aliased, fs/32 ``` *The Hilbert quantities of a struck 250 Hz mode: the envelope traces the exponential decay (top), and the instantaneous frequency sits on the carrier while the mode dominates, jittering as the signal sinks into the noise floor (bottom, ×8 anti-aliased decimation).*

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import envelope fs = 8192.0 t = np.arange(int(0.4 * fs)) / fs rng = np.random.default_rng(7) x = np.exp(-t / 0.1) * np.sin(2 * np.pi * 250.0 * t) # a struck mode x += 0.001 * rng.standard_normal(t.size) res = envelope(x, fs, decimation_factor=8) # One line — signal + envelope and the instantaneous frequency: res.plot() plt.show() # By hand, from the fields the result carries: fig, (ax_e, ax_f) = plt.subplots(2, 1, sharex=True) ax_e.plot(t, res.signal, lw=0.6, label="Signal") ax_e.plot(res.times, res.envelope, "r", lw=1.8, label="Envelope A(t)") ax_e.plot(res.times, -res.envelope, "r", lw=1.8) ax_e.legend() ax_f.plot(res.times, res.instantaneous_frequency, lw=0.9, label="Instantaneous frequency f(t)") ax_f.axhline(250.0, color="g", linestyle="--", label="carrier 250 Hz") ax_f.set(xlabel="Time [s]", ylabel="Frequency [Hz]", ylim=(230, 270)) ax_f.legend() plt.show() ```

The envelope of a band-limited signal is itself low-frequency, so the result offers optional **decimation**: a zero-phase FIR anti-alias filter by default, or plain subsampling with `antialias=False`, exactly the convention the ECMA-418-2 loudness/roughness chain of `phonometry.psychoacoustics` applies internally after its auditory bandpass (Formulae 65/119 of the standard), appropriate when the input is already narrowband. ## Relation to the spectral estimators `time_delay` (GCC and phase methods) runs on the same Welch core (taper, overlap policy, detrend-off calibration, segment defaults) as [`cross_spectral_density`](https://jmrplens.github.io/phonometry/guides/spectral-analysis/) and the H1/H2 [frequency-response estimators](https://jmrplens.github.io/phonometry/guides/electroacoustics/), so a GCC, a coherence and a cross-spectrum computed with the same segment length agree bin by bin; the `'phase'` estimator is literally the slope of the `CrossSpectralDensityResult` phase, weighted as Eq. 5.101b prescribes. The Hilbert envelope here is the time-domain companion of the [envelope spectrum](https://jmrplens.github.io/phonometry/guides/cepstrum-echoes/), which reads the same modulations off as discrete lines in frequency; and the sub-sample alignment shares its band-limited kernel with the public [fractional-delay and resampling tools](https://jmrplens.github.io/phonometry/guides/test-signals/). ## References - Bendat, J. S., & Piersol, A. G. (2010). *Random Data: Analysis and Measurement Procedures* (4th ed.). Wiley. ISBN 978-0-470-24877-5. [doi:10.1002/9781118032428](https://doi.org/10.1002/9781118032428). Sections 5.1.4 and 5.2.6-5.2.7 (time delay via correlation and cross-spectrum), 8.4 (random errors of correlation estimates and of the peak location), 11.4 (FFT computation with zero padding) and Chapter 13 (Hilbert transforms, envelope and instantaneous phase). - Knapp, C. H., & Carter, G. C. (1976). The generalized correlation method for estimation of time delay. *IEEE Transactions on Acoustics, Speech, and Signal Processing*, 24(4), 320-327. [doi:10.1109/TASSP.1976.1162830](https://doi.org/10.1109/TASSP.1976.1162830). The GCC framework, the Table I weightings and their conditions, and the maximum-likelihood (Hannan-Thomson) processor.
