Source: https://jmrplens.github.io/phonometry/devices/noise-control/silencers/ # Silencers A silencer earns its keep in a duct: between an engine and its tailpipe, between a fan and the room it serves. Two working principles divide the field. A **reactive** silencer attenuates by *reflecting* sound with impedance discontinuities (chambers, side branches) and dominates at low frequency, where a tone from a firing engine or a fan blade passage can be targeted exactly; a **dissipative** silencer *absorbs* sound in a porous lining and dominates broadband, at mid and high frequency. This guide covers the reactive family phonometry implements with the engineering theory of Bies, Hansen & Howard and Munjal's transfer-matrix formulation: the four-pole method, the closed-form expansion chamber, the Helmholtz, quarter-wave and extended-tube resonators, the independent FDTD cross-check, and the design trade-offs against dissipative linings. The rest of the installation, HVAC duct attenuation, flow noise and machine enclosures, lives in [Industrial noise control](https://jmrplens.github.io/phonometry/devices/noise-control/noise-control/). ## 1. Reactive silencers (four-pole method) A reactive silencer attenuates by *reflecting* sound with impedance discontinuities. Each acoustic element is a 2×2 **transfer (four-pole) matrix** relating the sound pressure $p$ and the volume velocity $Su$ at its two ends (Bies Eq. (8.133); Munjal, *Acoustics of Ducts and Mufflers*), and a compound silencer is the ordered matrix product of its elements. A straight duct of length $L$ and area $S$ is (Bies Eq. (8.143), no flow) $$ \begin{bmatrix} \cos kL & j\,\tfrac{\rho c}{S}\sin kL \\[2pt] j\,\tfrac{S}{\rho c}\sin kL & \cos kL \end{bmatrix}, \qquad k = \omega/c, $$ and a side branch of acoustic impedance $Z_\mathrm{b}$ is the shunt $\left[\begin{smallmatrix} 1 & 0 \\ 1/Z_\mathrm{b} & 1 \end{smallmatrix}\right]$ (Eq. (8.144)). The **transmission loss** follows from the compound matrix $T$ with the port impedances $Z_1 = \rho c/S_\text{in}$ and $Z_n = \rho c/S_\text{out}$ (Munjal Eq. (3.27); Bies Eq. (8.141) prints the `T11`/`T22` impedance weights of this formula inverted and fails the sudden-expansion limit, see the [errata registry](https://jmrplens.github.io/phonometry/reference/errata/)) $$ \mathrm{TL} = 10\log_{10}\!\left[\frac{Z_n}{Z_1}\,\tfrac{1}{4}\left|\,T_{11} + \tfrac{T_{12}}{Z_n} + Z_1\,T_{21} + \tfrac{Z_1}{Z_n}\,T_{22}\right|^2\right], $$ which for equal inlet/outlet areas reduces to (Bies Eq. (8.148)) $$ \mathrm{TL} = 20\log_{10}\!\left(\tfrac{1}{2}\left|\,T_{11} + \tfrac{T_{12}}{Z_\mathrm{c}} + Z_\mathrm{c}\,T_{21} + T_{22}\right|\right), \qquad Z_\mathrm{c} = \frac{\rho c}{S}, $$ and the **insertion loss** for a source impedance $Z_\mathrm{s}$ and a radiation impedance $Z_\mathrm{r}$ is the extra attenuation over a direct (zero-length) connection, so a through connection gives $\mathrm{IL} = 0$. ### Expansion chamber A chamber of area $S_\text{exp}$ and length $L$ between pipes of area $S_\text{duct}$ has the closed-form transmission loss (Bies Eq. (8.111)) with area ratio $m = S_\text{exp}/S_\text{duct}$: $$ \mathrm{TL} = 10\log_{10}\!\left[1 + \tfrac{1}{4}\left(m - \tfrac{1}{m}\right)^2 \sin^2 kL\right], $$ peaking at $10\log_{10}[1 + \tfrac14(m-1/m)^2]$ at $kL = \pi/2, 3\pi/2, \dots$ (1.94 dB for $m = 2$, 6.55 dB for $m = 4$, 12.18 dB for $m = 8$, 18.10 dB for $m = 16$) and dropping to 0 at $kL = n\pi$, where the chamber is a half-wavelength long and transparent. The four-pole product reproduces this exactly. ```python import numpy as np from phonometry import expansion_chamber freqs = np.linspace(20.0, 2000.0, 2000) res = expansion_chamber(freqs, length=0.3, chamber_area=0.04, pipe_area=0.01) print(round(res.transmission_loss.max(), 2)) # 6.55 dB peak (m = 4) res.plot() # TL (and IL) vs frequency ``` The numbers passed to `expansion_chamber` describe a real device, and `.plot_geometry()` draws it: the same 0.3 m chamber with its 4:1 area ratio, to scale and fully dimensioned. *The chamber behind the curves above, to scale: the areas enter the four-pole method only through the ratio $m$, and the drawing uses the equivalent circular diameters $d = 2\sqrt{S/\pi}$ of the 0.04 and 0.01 m² cross-sections.*

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import expansion_chamber, plot_silencer_geometry freqs = np.linspace(20.0, 2000.0, 2000) res = expansion_chamber(freqs, length=0.3, chamber_area=0.04, pipe_area=0.01) # One line: the dimensioned cross-section of the chamber just computed. res.plot_geometry() plt.show() # The same drawing without a result, from the free function: plot_silencer_geometry("expansion chamber", length=0.3, chamber_area=0.04, pipe_area=0.01) plt.show() ```

The clip below runs an $m = 4$ chamber of the same 0.30 m length in a 2D FDTD duct at its two characteristic frequencies. At $kL = \pi$ the chamber is a half-wave resonator and the tone crosses as if it were not there; at $kL = \pi/2$ the two area jumps reflect in phase and send the wave back up the inlet, the 6.5 dB peak of the four-pole curve above. [Watch the high-resolution video (WebM)](https://raw.githubusercontent.com/jmrplens/phonometry/main/.github/images/anim_fdtd_expansion_chamber.webm) ### Side-branch and extended-tube resonators A **Helmholtz resonator** (`helmholtz_resonator`) and a closed **quarter-wave tube** (`quarter_wave_resonator`) each short the duct at their tuning frequency, $f_0 = \tfrac{c}{2\pi}\sqrt{S_\text{neck}/(l_\mathrm{e} V)}$ (Bies Eq. (8.46)) and $f = c/4l_\mathrm{e}$ (Eq. (8.44)), giving a sharp transmission-loss spike there. An **extended-tube chamber** (`extended_tube_chamber`) buries quarter-wave side branches in an expansion chamber to fill its troughs; with zero extensions it reduces exactly to the plain chamber. Advanced layouts chain elements directly with `duct_matrix`, `shunt_matrix`, `cascade`, `transmission_loss` and `insertion_loss`. ```python import numpy as np from phonometry import ( helmholtz_resonator, quarter_wave_resonator, extended_tube_chamber, ) f = np.linspace(20.0, 600.0, 4000) hr = helmholtz_resonator(f, duct_area=0.01, neck_area=1e-4, neck_length=0.02, cavity_volume=1e-3) print(round(float(hr.resonances[0]), 1)) # tuning frequency, Hz hr.plot() # TL spike at the tuning frequency (needs matplotlib) qw = quarter_wave_resonator(f, duct_area=0.01, length=1.516, branch_area=2e-3, speed_of_sound=343.24) print(round(float(qw.resonances[0]), 1)) # 56.6 Hz (Bies Example 8.1) # Each extension is a quarter-wave stub, so its own length picks the trough # it fills: L/4 = 0.1 m shorts the duct at c/4(L/4) = c/L, the chamber's # second trough, and L/2 = 0.2 m would take the first one at c/2L. et = extended_tube_chamber(f, length=0.4, chamber_area=0.04, pipe_area=0.01, inlet_extension=0.1) ``` *Each side branch shorts the duct at its own tuning frequency and is nearly transparent elsewhere: the narrow spike is why resonators are matched to a firing frequency or a fan blade-passing tone rather than used broadband.*

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import helmholtz_resonator, quarter_wave_resonator f = np.linspace(20.0, 600.0, 4000) hr = helmholtz_resonator(f, duct_area=0.01, neck_area=1e-4, neck_length=0.02, cavity_volume=1e-3) qw = quarter_wave_resonator(f, duct_area=0.01, length=0.3, branch_area=2e-3) # One line for one device: TL vs frequency with the resonance marked. hr.plot() plt.show() # By hand: both side branches on the same axes. fig, ax = plt.subplots() ax.plot(f, hr.transmission_loss, label="Helmholtz resonator") ax.plot(f, qw.transmission_loss, "--", label="Quarter-wave tube") for fr in (hr.resonances[0], qw.resonances[0]): ax.axvline(float(fr), ls=":", color="#2ca02c") ax.set_xlabel("Frequency [Hz]"); ax.set_ylabel("Transmission loss [dB]") ax.set_ylim(0.0, 50.0) ax.legend() plt.show() ```

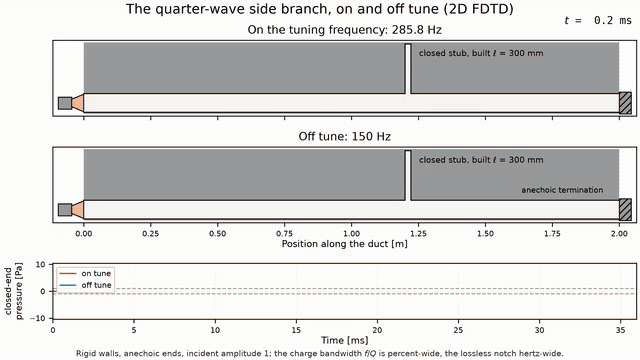

Why is the spike only a few hertz wide? Because a resonator takes time to work: it has to **charge**. The clip below drives the 0.30 m stub above in a 2D FDTD duct at its 285.8 Hz tuning frequency and at 150 Hz side by side. On tune the closed-end pressure ratchets up over about six periods to 8.2 times the incident wave (the lossless branch at exact resonance would reach ten); off tune it settles at 1.5 times immediately and never charges — the charge has the percent-wide bandwidth $f/Q$, while the lossless TL spike is hertz-wide. The clip also reports the trim procedure once on screen: built at the drilled 300 mm, the simulated device rings at 272.9 Hz, an effective length $c/4f = 314$ mm, the junction end correction made visible. [Watch the high-resolution video (WebM)](https://raw.githubusercontent.com/jmrplens/phonometry/main/.github/images/anim_fdtd_side_branch.webm) Both branches are small hardware, and `.plot_geometry()` shows just how small: the resonator of the 120 Hz spike is a 1 L cavity fed by a 1 cm² neck only 2 cm long. *The whole 120 Hz notch hangs on a 1 L box and a 2 cm neck: the cavity is drawn as its equal-volume cube, and the tuning moves as $\sqrt{S_\mathrm{n}/(l_\mathrm{e} V)}$, so small errors in these dimensions shift the spike off its target.*

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import helmholtz_resonator f = np.linspace(20.0, 600.0, 4000) hr = helmholtz_resonator(f, duct_area=0.01, neck_area=1e-4, neck_length=0.02, cavity_volume=1e-3) # One line: the side branch drawn to scale, cavity as its equal-volume cube. hr.plot_geometry() plt.show() ```

The quarter-wave tube needs no cavity at all: the 285 Hz spike of the figure above comes from a plain closed tube of the right length standing on the same duct. *A quarter-wave stub is just a closed tube of the right length: 0.3 m of pipe puts the spike at $c/4l_\mathrm{e} \approx 285\ \text{Hz}$, and the 20 cm² branch area only sets how strongly the stub loads the duct.*

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import quarter_wave_resonator f = np.linspace(20.0, 600.0, 4000) qw = quarter_wave_resonator(f, duct_area=0.01, length=0.3, branch_area=2e-3) # One line: the closed 0.3 m tube on its duct, to scale. qw.plot_geometry() plt.show() ```

Each device returns a `ReactiveSilencerResult` with `transmission_loss`, `insertion_loss` (when source/radiation impedances are given), the compound `transfer_matrix`, the tuning `resonances`, the `plane_wave_limit` of its widest cross section and `.plot()`. That last one is the validity ceiling: above the first higher-order cut-on the computed peaks and troughs do not survive, and the result raises a `PlaneWaveWarning` when the analysis grid runs past it (890.8 Hz for the 0.04 m² chamber above). **Layouts of your own.** A two-chamber muffler, or a chamber with a stub on its inlet pipe, is cascaded element by element. `SilencerChain` makes the same `duct_matrix`/`shunt_matrix`/`cascade` calls and keeps what each element was handed, so the layout can be drawn as well as computed. What the drawing may show follows from what the elements declare: a duct is handed a length and an area and is drawn to scale and dimensioned, while a shunt is handed an impedance, which fixes no length, no area and no volume, so it is marked at the station where it joins and lettered with the frequency at which it is least, and nothing about it is dimensioned. A chain that holds no duct of positive length has no geometry and no scale to draw at, so it raises rather than drawing one. *Every measurement on the page comes from what the chain was given: the four duct lengths and their sum are the numbers themselves, and the two bores are the areas it was handed, restated as the equivalent circular diameter $d = 2\sqrt{S/\pi}$. The two branches carry no dimension at all, because an impedance is not a shape.*

Show the code for this figure

```python import matplotlib.pyplot as plt import numpy as np from phonometry import SilencerChain from phonometry.noise_control import helmholtz_impedance, quarter_wave_impedance freqs = np.linspace(20.0, 500.0, 481) s_duct = np.pi * 0.100**2 # nominal 200 mm duct s_shell = np.pi * 0.200**2 # nominal 400 mm shell chain = ( SilencerChain(freqs) .duct(0.10, s_duct) .shunt(quarter_wave_impedance(freqs, 343.0 / (4.0 * 125.0), np.pi * 0.050**2), label="Quarter-wave stub") .duct(0.20, s_duct) .duct(0.60, s_shell) .shunt(helmholtz_impedance(freqs, np.pi * 0.025**2, 0.05, 2e-3), label="Helmholtz resonator") .duct(0.30, s_duct) ) # One line: the chain drawn exactly as it was declared. chain.plot_geometry() plt.show() # The same elements evaluated, ports included. res = chain.result(inlet_area=s_duct, outlet_area=s_duct) ```

**Test-report fiche.** `ReactiveSilencerResult.report(path)` renders a one-page fiche in the layout of a silencer performance sheet: a metadata header, the octave-band transmission-loss table beside the same curve plotted against frequency, and the boxed mean transmission loss over the analysis bands together with the peak value and the device kind, plus an optional verdict against a declared minimum mean transmission loss. Rendering needs reportlab and, for the embedded figure, matplotlib (`pip install "phonometry[report,plot]"`), and `language="es"` renders a Spanish fiche. ```python import numpy as np from phonometry import ReportMetadata, expansion_chamber # A 0.5 m chamber of area ratio m = 8, at the octave-band centres. freqs = np.array([63.0, 125.0, 250.0, 500.0, 1000.0, 2000.0, 4000.0]) res = expansion_chamber(freqs, length=0.5, chamber_area=0.08, pipe_area=0.01) res.report( "silencer_fiche.pdf", metadata=ReportMetadata( specimen="Simple expansion-chamber muffler (m = 8, design case)", measurement_standard="Munjal Eq. (3.27) four-pole model", laboratory="Phonometry Reference Laboratory", requirement=6.0, # minimum acceptable mean transmission loss ), ) # mean and peak transmission loss (dB) ``` The example fiche is regenerated with `make reports` and kept rendered in the repository: [](https://raw.githubusercontent.com/jmrplens/phonometry/main/.github/reports/reactive_silencer_example.pdf) **What that fiche is not.** The number in the box is a plane-wave prediction from the declared geometry. The figure a supplier publishes is an **insertion loss measured by substitution** to ISO 7235:2003: two series with everything else unchanged, one with the test object installed and one with a substitution duct in its place, differenced third octave by third octave as `D_i = L_pII - L_pI`. The rig carries its own requirements — a sealed, lined loudspeaker box driving at least 6 dB and preferably 10 dB above the background, a modal filter attenuating the fundamental by at least 3 dB and higher-order modes by at least 5 dB above cut-on, a substitution duct matched within 5 % in every linear dimension, a receiving side with a reflection coefficient no greater than 0.3, and at least three microphone positions on a line inclined to the duct axis — and every facility has a *limiting insertion loss* set by flanking along its own duct walls, which caps what it can report at all. A computed transmission loss and a catalogue insertion loss are therefore not the same quantity and must not be compared directly. ## 2. Reactive or dissipative? Everything above works by reflection, and reflection has a shape: sharp, periodic, frequency-selective. The complementary family, **dissipative** silencers, replaces the impedance discontinuities with a duct section whose walls are lined with porous material (often protected by a perforated facing), so the grazing wave loses energy to viscous friction in the lining instead of being sent back to the source. The behaviours differ where it matters for selection: - **Frequency reach.** A reactive chamber or resonator is strongest exactly where it is tuned and transparent elsewhere; a lined duct attenuates over a broad band that peaks where the lining depth is comparable with a quarter wavelength. At low frequency a practical lining is acoustically thin and does little, which is the regime where the reactive chamber wins; at high frequency the sound beams down the open airway and passes over the lining, so the attenuation of both families collapses and only splitter geometries (narrow airways, more lined perimeter per unit area) keep working. - **Spectrum type.** A tonal source, an engine firing order or a blade-passing frequency, is a resonator's natural prey; broadband fan or flow noise wants the dissipative band. Production exhaust silencers routinely combine the two, packing an expansion chamber with fibre so the reflective troughs of the chamber are filled by absorption. - **The medium.** A porous lining in a hot, sooty or pulsating exhaust clogs and degrades, one reason vehicle exhausts are predominantly reactive; clean HVAC air is where dissipative attenuators and lined plenums are the default. In either case the airflow adds its own floor: a silencer regenerates flow noise at its own outlet, and past a certain pressure drop the silencer becomes the noise source. phonometry models the reactive family in closed form on this page. The dissipative side enters at installation level, through the [HVAC methods](https://jmrplens.github.io/phonometry/devices/noise-control/noise-control/): the lined-elbow insertion loss read from tabulated ASHRAE data and the lined plenum attenuation from Wells' closed form, neither of them a liner model. The porous physics that a first-principles liner calculation needs, the equivalent-fluid models fed by the airflow resistivity, is the same material theory as [Porous and Multilayer Absorbers](https://jmrplens.github.io/phonometry/materials/absorbers/porous-absorbers/). ## Cross-check against the FDTD solver That cross-check is the clip embedded in section 1, and it is worth returning to it now with the algebra in hand. The four-pole expansion chamber is checked against the independent 2D [FDTD wave solver](https://jmrplens.github.io/phonometry/simulation/fdtd-simulation/), which shares no formula and no assumption with the transfer-matrix product beyond the wave equation itself: a plane-wave duct that widens into the same 0.30 m, $m = 4$ chamber and narrows back transmits far less at the four-pole TL peak ($kL = \pi/2$, here 286 Hz) than at the transparent trough ($kL = \pi$, 572 Hz). The amplitude ratio measured downstream in the field is the transmission loss annotated on the clip, 6.5 dB at 286 Hz and 0.0 dB at 572 Hz, against the 6.55 dB the closed form gives for $m = 4$ (test `tests/noise_control/test_fdtd_crosscheck.py`). Agreement that close rules out an algebra error on either side. The two must eventually part company above the duct's first cut-on frequency, where higher-order modes propagate: the two-dimensional solver keeps working there and the plane-wave algebra does not. ## What this guide covers **Covered.** Reactive silencers by the four-pole transfer-matrix method (Bies §8.8-8.9, Munjal Eq. (3.27)): the closed-form `expansion_chamber` (Eq. (8.111)), `helmholtz_resonator` and `quarter_wave_resonator` (Eqs. (8.46), (8.44)), `extended_tube_chamber`, and the `duct_matrix` / `shunt_matrix` / `cascade` / `transmission_loss` / `insertion_loss` blocks for arbitrary chains, gathered by `SilencerChain` into a chain that keeps its geometry, each with its to-scale `.plot_geometry()` and cross-checked against the independent FDTD solver; the `plane_wave_limit` that bounds all of them; and, as prose rather than code, the ISO 7235 substitution measurement that produces the insertion loss a supplier publishes. **Not covered.** Reactive elements only. Dissipative (absorptive, duct-lining) silencers are discussed for selection but never modelled from liner properties, and in the [HVAC methods](https://jmrplens.github.io/phonometry/devices/noise-control/noise-control/) the lined-elbow figure is a table lookup (Bies Table 8.11) and the plenum is Wells' closed form driven by a declared mean absorption — neither is a liner model. Mean-flow effects — convection, temperature gradients, the flow-dependent impedance of perforates — are outside the no-flow element matrices used here. Nothing on this page is a measurement: no part of ISO 7235 is implemented, shell breakout and the end corrections at the area jumps are not modelled, and the branch models are lossless unless a `resistance` is supplied. ## See also - [Duct-borne noise: fan to room](https://jmrplens.github.io/phonometry/devices/noise-control/duct-path/): the end-to-end fan-to-room calculation these silencers sit inside, and the higher-order-mode cut-on above which the four-pole method describes the plane-wave mode alone. - [Industrial noise control](https://jmrplens.github.io/phonometry/devices/noise-control/noise-control/): the rest of the installation: HVAC duct attenuation and flow noise, plenums, end reflection and machine enclosures. - [2D FDTD wave simulation](https://jmrplens.github.io/phonometry/simulation/fdtd-simulation/): the independent solver behind the expansion-chamber cross-check. - [Porous and Multilayer Absorbers](https://jmrplens.github.io/phonometry/materials/absorbers/porous-absorbers/): the equivalent-fluid material theory behind dissipative linings. - [Loudspeaker Characterisation (IEC 60268-5)](https://jmrplens.github.io/phonometry/devices/electroacoustics/loudspeakers/): the radiating piston, the companion radiator model of a duct's open end. - API reference: [`noise_control.silencers`](https://jmrplens.github.io/phonometry/reference/api/noise_control/silencers/). ## References - Bies, D. A., Hansen, C. H., & Howard, C. Q. (2017). *Engineering noise control* (5th ed.). CRC Press. [doi:10.1201/9781351228152](https://doi.org/10.1201/9781351228152). The muffler four-pole method, the expansion-chamber TL and the resonator tuning formulas (§8.8–8.9) of this guide. - Munjal, M. L. (2014). *Acoustics of ducts and mufflers* (2nd ed.). Wiley. [doi:10.1002/9781118443767](https://doi.org/10.1002/9781118443767). The transfer-matrix formulation behind the element matrices and the transmission loss from the compound matrix (Eq. (3.27)), and the reference treatment of dissipative and combined mufflers. - Vér, I. L., & Beranek, L. L. (2006). *Noise and vibration control engineering* (2nd ed.). Wiley. [doi:10.1002/9780470172568](https://doi.org/10.1002/9780470172568). The companion treatment of reactive and dissipative silencers.
